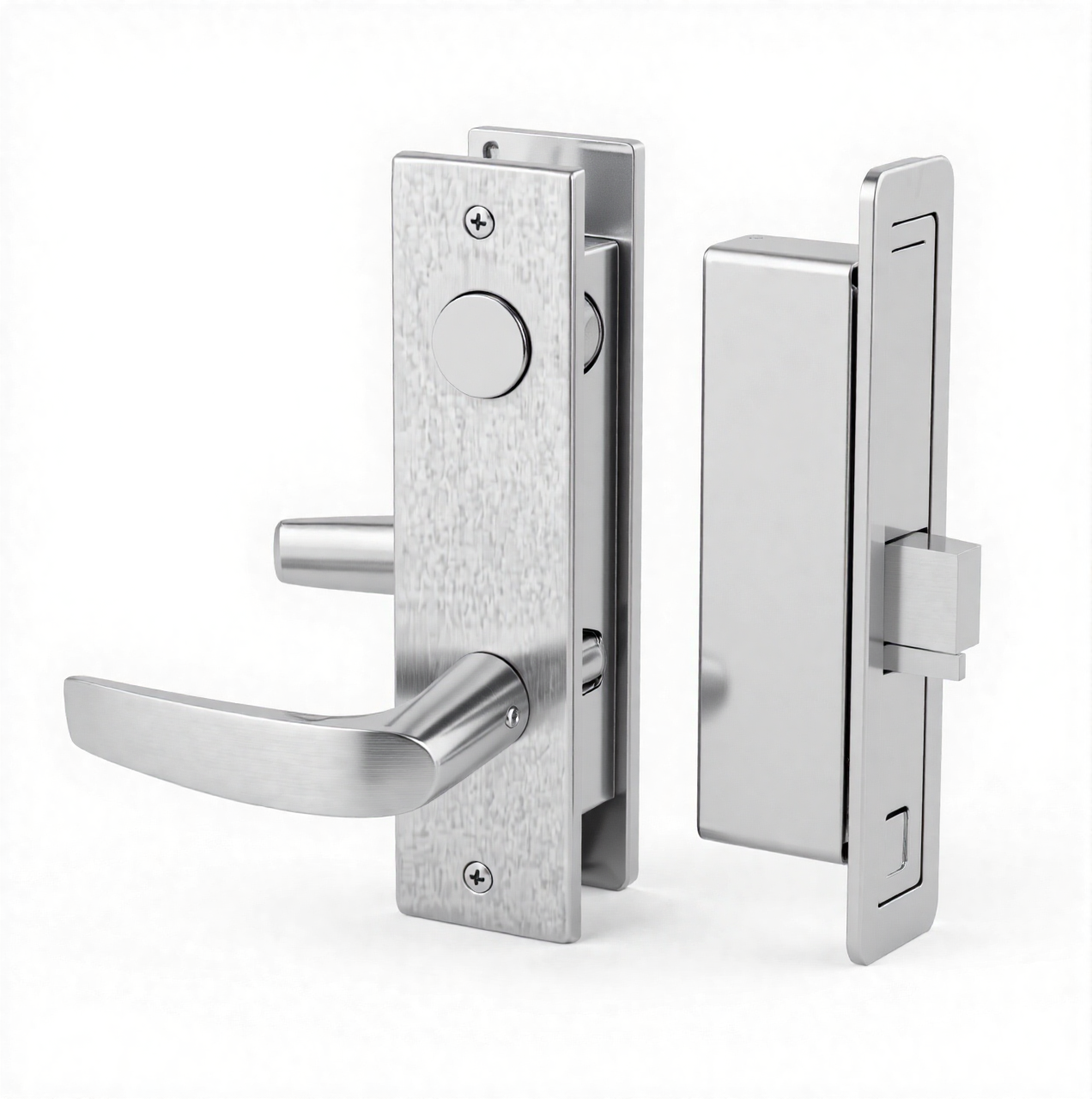

  • 60-8227-LW1L-32D Sargent 8200 Series Storeroom Mortise Lock in Satin Stainless

    • 60-8227-LW1L-32D Sargent 8200 Series Storeroom Mortise Lock in Satin Stainless

    Sargent

    MSRP: $1,782.00
    $993.11
    (You save $788.89 )
    SKU:
    60-8227-LW1L-32D
    Condition:
    New
    Availability:
    available
    Product Type:
    Mortise Lock
    Function:
    Storeroom
    Series:
    8200
    Finish:
    Satin Stainless
    Trim:
    LW1 Escutcheon, L Lever
    Cylinder:
    Interchangeable Core
    Mount Type:
    Mortise
    Fire Rated:
    Fire Rated
    Adding to cart… category.add_cart_announcement

    Product Description

    Supply closets, utility rooms, server rooms, pharmaceutical storage — anywhere you never want someone leaving the door unlocked. That's Storeroom function.

    The Sargent 60-8227-LW1L-32D is a Storeroom function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Storeroom function means the outside lever is always locked — you need a key every single time you enter. Inside lever is always free for egress. No one can accidentally leave this door unlocked.

    SKU Breakdown: 60-8227-LW1L-32D
    60Electrified mortise lock (60 prefix)
    8227Series 8200, Storeroom function
    LW1LTrim code: LW1L
    32DFinish: Satin Stainless
    LFIC Prep — Ships With Housing, Less Core — The 60- prefix means this lock ships with an LFIC housing (cylinder) instead of a standard pinned cylinder. Install the lock in the door first, then screw the LFIC housing into the lock body like any mortise cylinder. Order your LFIC core separately to match your building's keyway — the core snaps into the housing with a control key. No re-pinning, no tools, swap takes 10 seconds. That's why universities and hospitals love LFIC — one lost key doesn't mean rekeying a whole building.

    This one comes with LW1 Escutcheon, L Lever in Satin Stainless — the 32D finish that laughs at corrosion. Coastal, pool areas, food service, anywhere moisture is a factor. Costs more than chrome but outlasts it 3-to-1 in harsh environments.

    The L lever is Sargent's straight-design commercial lever — clean lines, ADA compliant, gets the job done without drawing attention to itself. The lever that disappears into the building.

    Pro-Tip from Our Locksmiths: Don't confuse Storeroom with Entry/Office. Storeroom relocks every time the door closes — you need your key for every entry. Entry/Office stays unlocked after one key turn until you manually relock it. We get this call at least once a week: "My lock keeps locking me out!" — that's Storeroom working exactly as designed.
    CertificationANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating)
    Backset2-3/4"
    Face Size8" x 1-1/4"
    Warranty10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477.
    • ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
    • 3-hour fire rated — UL 10C listed for positive pressure fire test
    • LW1 Escutcheon, L Lever — Sargent commercial trim
    • Satin Stainless finish
    • Field reversible — works on left or right hand doors without modification

    Related Products:

    20+ Years in the Trade — Lock Depot started as a locksmith shop and grew into one of the largest online commercial hardware distributors in the country. Every Sargent product ships factory-sealed with the complete manufacturer warranty. Need help? (877) 365-5625 — we'll answer in locksmith, not sales talk.

    Image shown is representative of this product line. Actual product matches your selected finish and configuration.

    Warranty Information

    Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.

    Product Videos

    Custom Field

    Product Type Mortise Lock
    Function Storeroom
    Series 8200
    Finish Satin Stainless
    Trim LW1 Escutcheon, L Lever
    Cylinder Interchangeable Core
    Mount Type Mortise
    Fire Rated Fire Rated
