Product Description
This is the lock you put on every office door in a commercial building. Turn the key once in the morning, the door stays unlocked all day. Turn it again at night, it's locked.

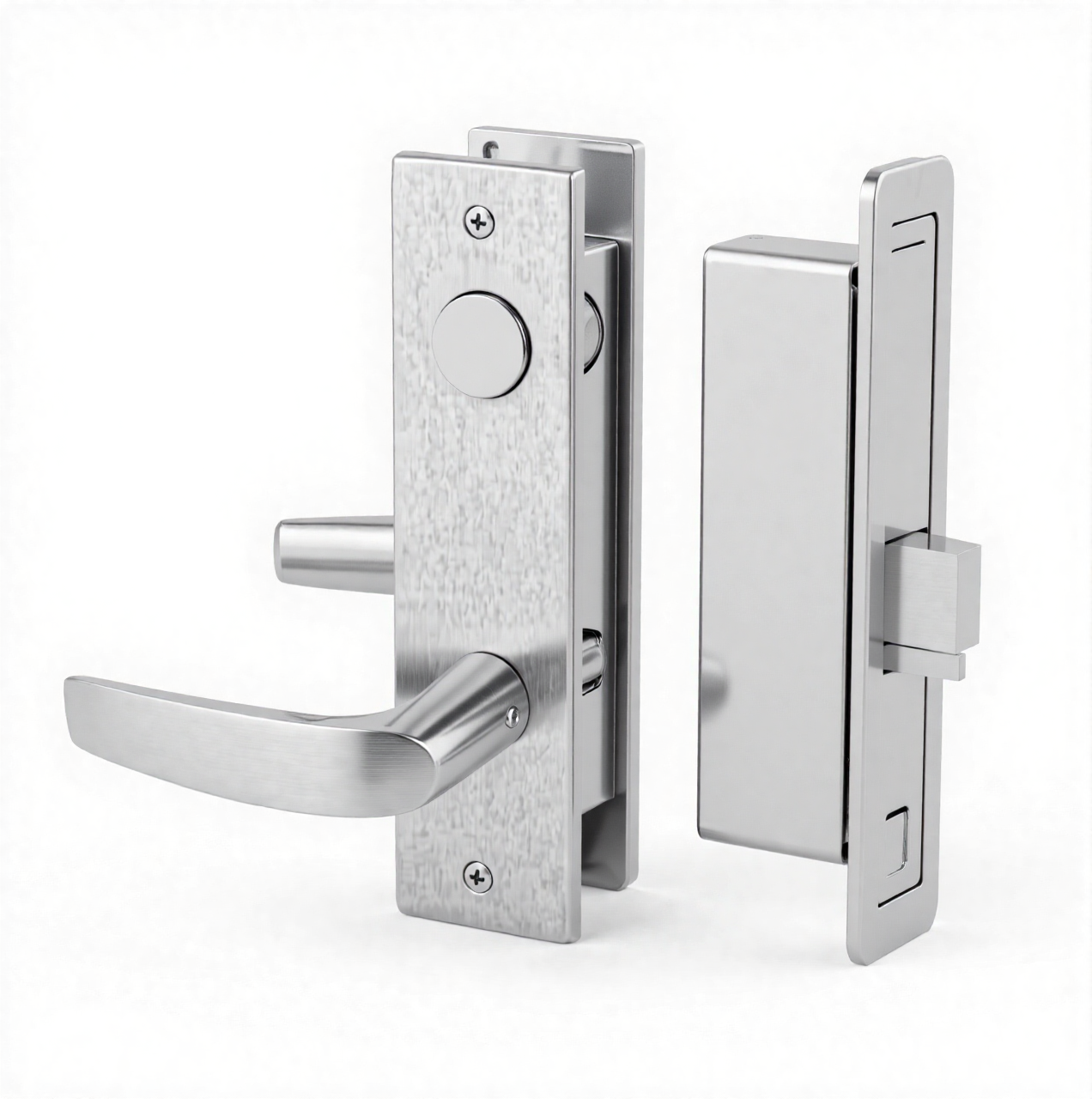

The Sargent 60-8243-LW1L-4 is a Entry/Office function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Entry/Office function means one key turn unlocks the outside lever, and it stays unlocked until you deliberately relock it with the key. Inside lever is always free. This is the lock that makes sense for daily office use.
| SKU Breakdown: 60-8243-LW1L-4 | |
| 60 | Electrified mortise lock (60 prefix) |
| 8243 | Series 8200, Vestibule function |
| LW1L | Trim code: LW1L |
| 4 | Finish code: 4 |
This one comes with LW1 Escutcheon, L Lever in Satin Brass — the 04 finish making a huge comeback in commercial design. Popular on boutique hotels, upscale office buildings, and any project where the architect wants warm tones.
The L lever is Sargent's straight-design commercial lever — clean lines, ADA compliant, gets the job done without drawing attention to itself. The lever that disappears into the building.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LW1 Escutcheon, L Lever — Sargent commercial trim
- Satin Brass finish
- Field reversible — works on left or right hand doors without modification
