Product Description
The Sargent 60-8270-24V-LE1J-10B is a 8200 Series Fail Safe mortise lock in Oil Rubbed Bronze (US10B/613). Unlocks on power loss for life safety egress.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 60-8270-24V-LE1J-10B | |
| 60 | Series 8200, Fail Safe function |
| 8270 | Trim/lever design: LE1 Escutcheon, J Lever |
| 24V | Finish: Oil Rubbed Bronze |
| LE1J | Configuration modifier |
| 10B | Configuration modifier |
Pro-Tip from Our Locksmiths: The 8200 Series is Sargent's flagship mortise lock — you'll find it in hospitals, universities, and government buildings across the country. The cast stainless steel chassis handles millions of cycles without the wobble you get from stamped steel competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 60-8270-24V-LE1J-10B |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Trim / Lever | LE1 Escutcheon, J Lever |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Mount Type | Mortise |
| Cylinder | Interchangeable Core |
| Fire Rating | Fire Rated — UL Listed |
| Voltage | 12/24VDC |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Safe function — Unlocks on power loss for life safety egress.
- Oil Rubbed Bronze (US10B/613) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

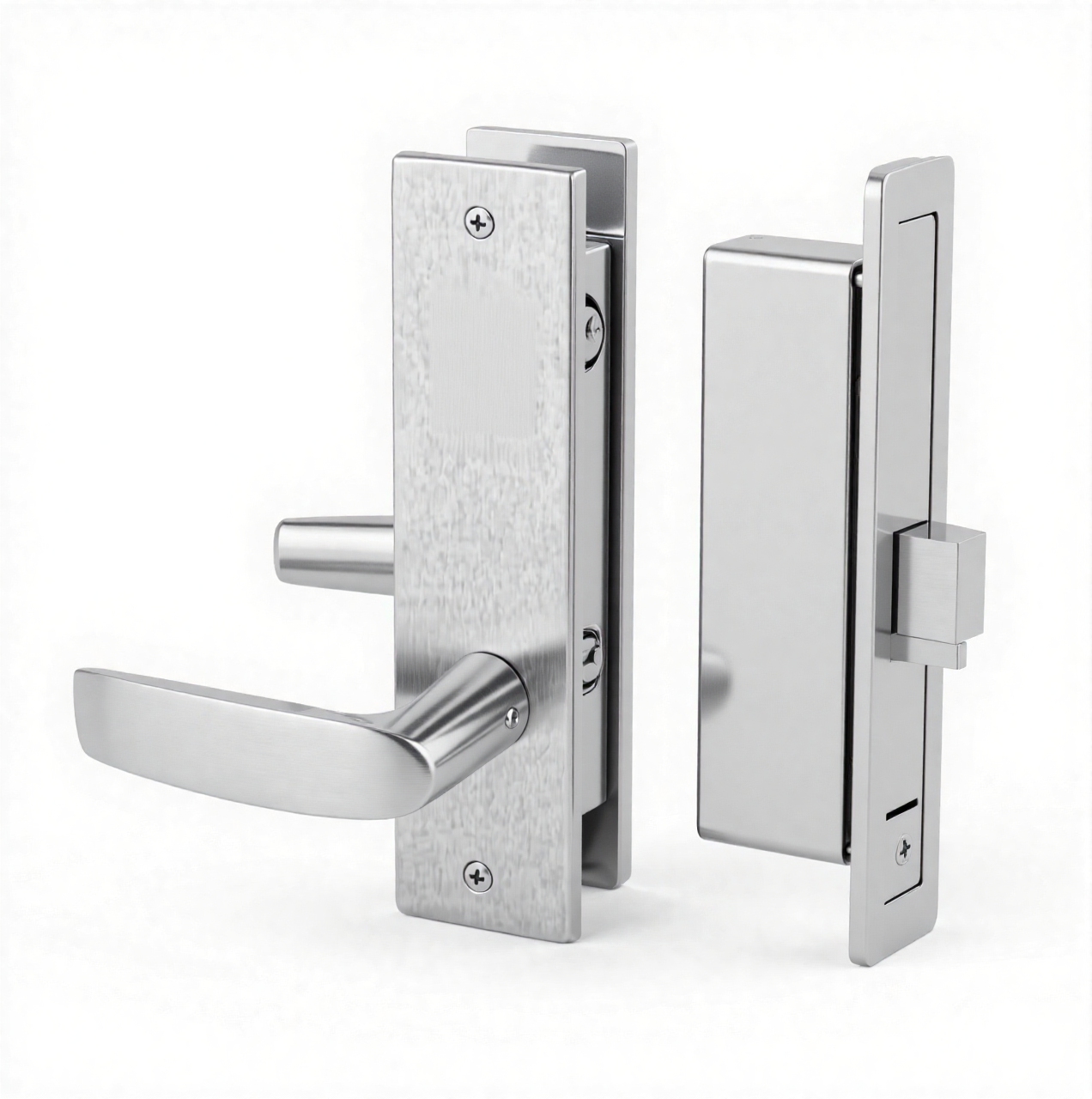

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
