  • 60-8271-24V-LNL-4 Sargent 8200 Series Fail Secure Electrified Mortise Lock in Satin Brass - commercial door hardware from Lock Depot, authorized Sargent distributor

    • 60-8271-24V-LNL-4 Sargent 8200 Series Fail Secure Electrified Mortise Lock in Satin Brass

    Sargent

    MSRP: $2,038.00
    $1,135.78
    (You save $902.22 )
    SKU:
    60-8271-24V-LNL-4
    Condition:
    New
    Availability:
    available
    Product Type:
    Mortise Lock
    Function:
    Fail Secure
    Series:
    8200
    Finish:
    Satin Brass
    Trim:
    LN Rose, L Lever
    Cylinder:
    Interchangeable Core
    Mount Type:
    Mortise
    Fire Rated:
    Fire Rated
    Voltage:
    12/24VDC
    Mode:
    Fail Secure
    Adding to cart… category.add_cart_announcement

    Product Description

    Server rooms, pharmacies, evidence rooms, armories — anywhere the door absolutely MUST stay locked even when the power goes out. That's Fail Secure.

    The Sargent 60-8271-24V-LNL-4 is a Fail Secure function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Fail Secure electric operation wired for 12/24VDC from your access control panel. The lock stays locked when power is cut — the right choice for secured rooms where losing power should not mean losing security. Inside lever always free for egress.

    Fail Secure Operation — This lock stays locked when power is lost. If the building loses power or the access control panel goes down, this door stays locked from outside. Inside lever is always free for egress (code requirement). Use on server rooms, pharmacies, evidence rooms — anywhere keeping people OUT is the priority during an outage.
    LFIC Prep — Ships With Housing, Less Core — The 60- prefix means this lock ships with an LFIC housing (cylinder) instead of a standard pinned cylinder. Install the lock in the door first, then screw the LFIC housing into the lock body like any mortise cylinder. Order your LFIC core separately to match your building's keyway — the core snaps into the housing with a control key. No re-pinning, no tools, swap takes 10 seconds. That's why universities and hospitals love LFIC — one lost key doesn't mean rekeying a whole building.

    This one comes with LN Rose, L Lever in Satin Brass — the 04 finish making a huge comeback in commercial design. Popular on boutique hotels, upscale office buildings, and any project where the architect wants warm tones.

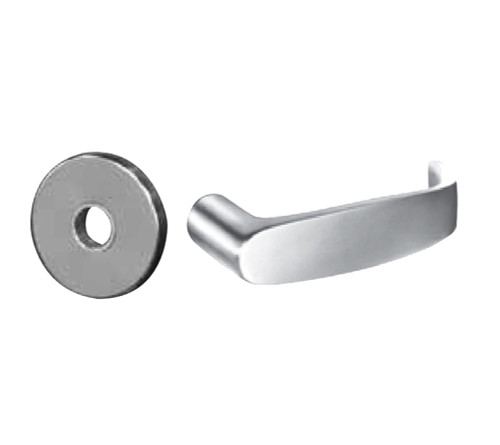

    The L lever is Sargent's straight-design commercial lever — clean lines, ADA compliant, gets the job done without drawing attention to itself. The lever that disappears into the building.

    Pro-Tip from Our Locksmiths: Fail Secure vs. Fail Safe — get this right. Fail Secure stays locked when power is lost. Fail Safe unlocks when power is lost. Fail Safe is for egress doors. Fail Secure is for secured spaces. If you need egress during a power failure (corridors, stairs, common areas), you need Fail Safe instead.
    CertificationANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating)
    Backset2-3/4"
    Face Size8" x 1-1/4"
    Warranty3-Year Limited (electromechanical). Mechanical components: 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477.
    • ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
    • 3-hour fire rated — UL 10C listed for positive pressure fire test
    • LN Rose, L Lever — Sargent commercial trim
    • Satin Brass finish
    • Field reversible — works on left or right hand doors without modification

    Related Products:

    20+ Years in the Trade — Lock Depot started as a locksmith shop and grew into one of the largest online commercial hardware distributors in the country. Every Sargent product ships factory-sealed with the complete manufacturer warranty. Need help? (877) 365-5625 — we'll answer in locksmith, not sales talk.

    Image shown is representative of this product line. Actual product matches your selected finish and configuration.

    Warranty Information

    Sargent provides a 3-year limited warranty on electromechanical components covering defects in materials and workmanship under normal use and service. Mechanical components retain their own warranty period. Warranty applies to the original purchaser when installed per Sargent specifications.

    Product Videos

    Custom Field

    Product Type Mortise Lock
    Function Fail Secure
    Series 8200
    Finish Satin Brass
    Trim LN Rose, L Lever
    Cylinder Interchangeable Core
    Mount Type Mortise
    Fire Rated Fire Rated
    Voltage 12/24VDC
    Mode Fail Secure
