Product Description
Every school, hospital, and government building running access control needs electrified locks — and Fail Safe is required by code on fire-rated egress paths. This is that lock.

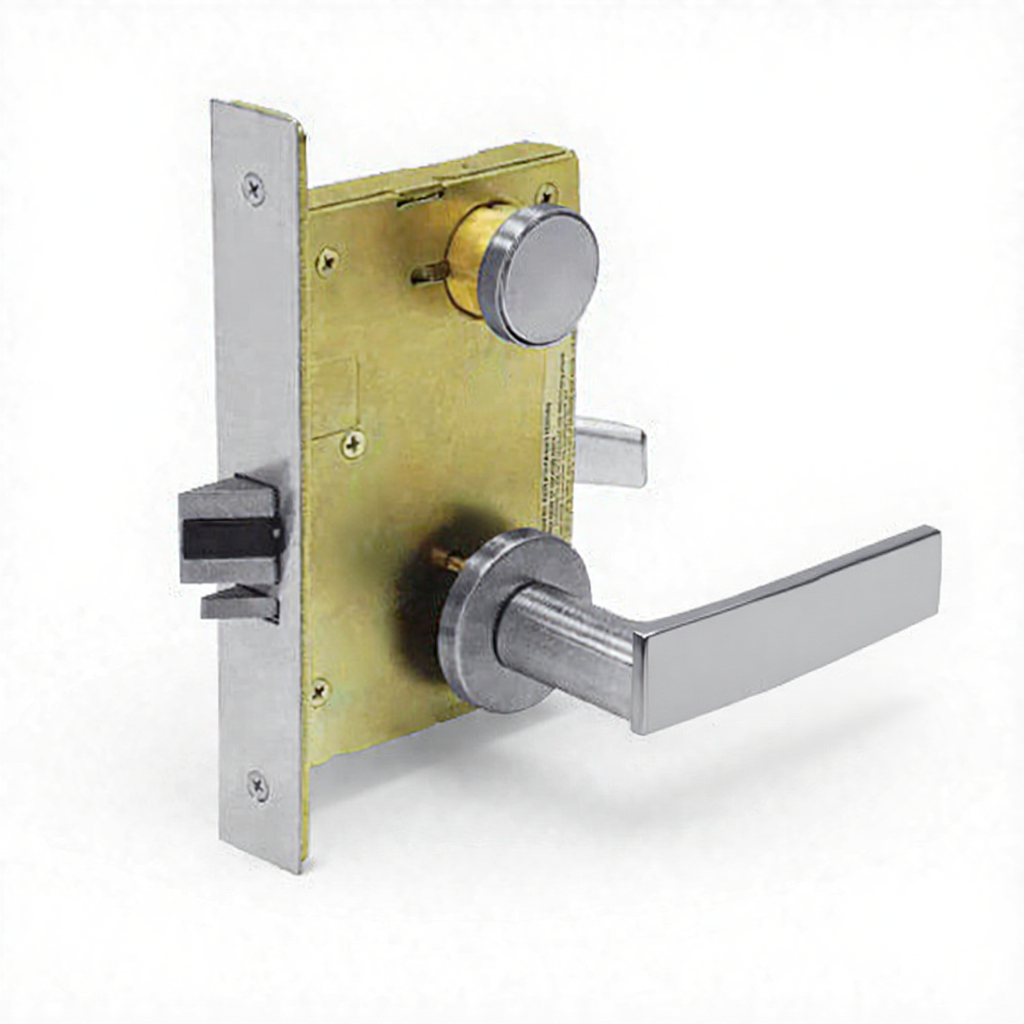

The Sargent 60-8272-24V-LNP-26D is a Fail Safe function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Fail Safe electric operation wired for 12/24VDC from your access control panel, card reader, or keypad system. The lock retracts the latch automatically when power is cut — code-required on fire-rated egress doors.
This one comes with LN Rose, P Lever in Satin Chrome — the 26D finish you see on 90% of commercial jobs because it hides fingerprints, resists wear, and matches every other piece of hardware in the building. When in doubt, 26D is the safe bet.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 3-Year Limited (electromechanical). Mechanical components: 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test

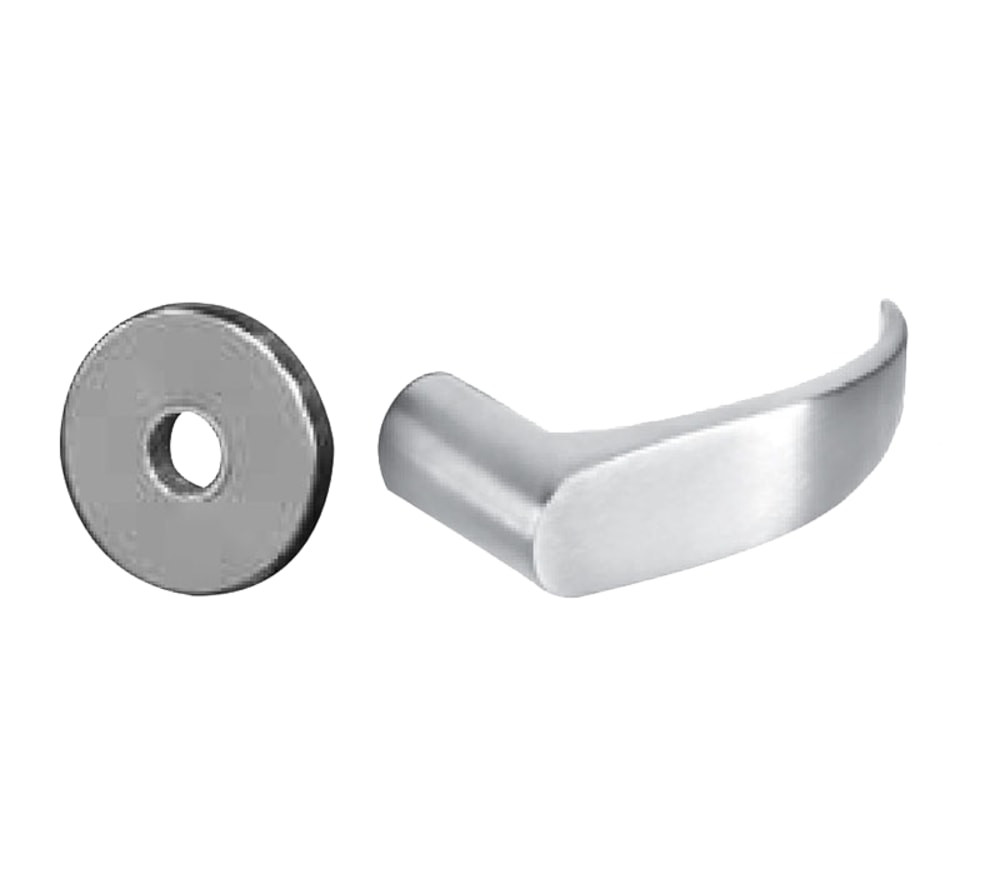

- LN Rose, P Lever — Sargent commercial trim
- Satin Chrome (US26D/626) — the industry standard commercial finish, hides fingerprints and matches existing hardware
- Field reversible — works on left or right hand doors without modification
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
- Sargent Electrified Mortise Locks — Compare Fail Safe vs. Fail Secure
20+ Years in the Trade — Lock Depot started as a locksmith shop and grew into one of the largest online commercial hardware distributors in the country. Every Sargent product ships factory-sealed with the complete manufacturer warranty. Need help? (877) 365-5625 — we'll answer in locksmith, not sales talk.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
