Product Description
The Sargent 60RX-8270-24V-LW1L-26D is a 8200 Series Fail Safe mortise lock in Satin Chrome (US26D/626). Unlocks on power loss for life safety egress.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 60RX-8270-24V-LW1L-26D | |
| 60RX | Electrified + Request to Exit |
| 8270 | Series 8200, Institution function |
| 24V | Voltage: 24V |
| LW1L | Trim code: LW1L |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control. The tolerances on Sargent cylinders are tighter than most competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 60RX-8270-24V-LW1L-26D |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Safe function — Unlocks on power loss for life safety egress.
- Satin Chrome (US26D/626) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Ships Same Day — Order before 2PM EST and your Sargent product ships the same business day. Lock Depot is an authorized Sargent distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

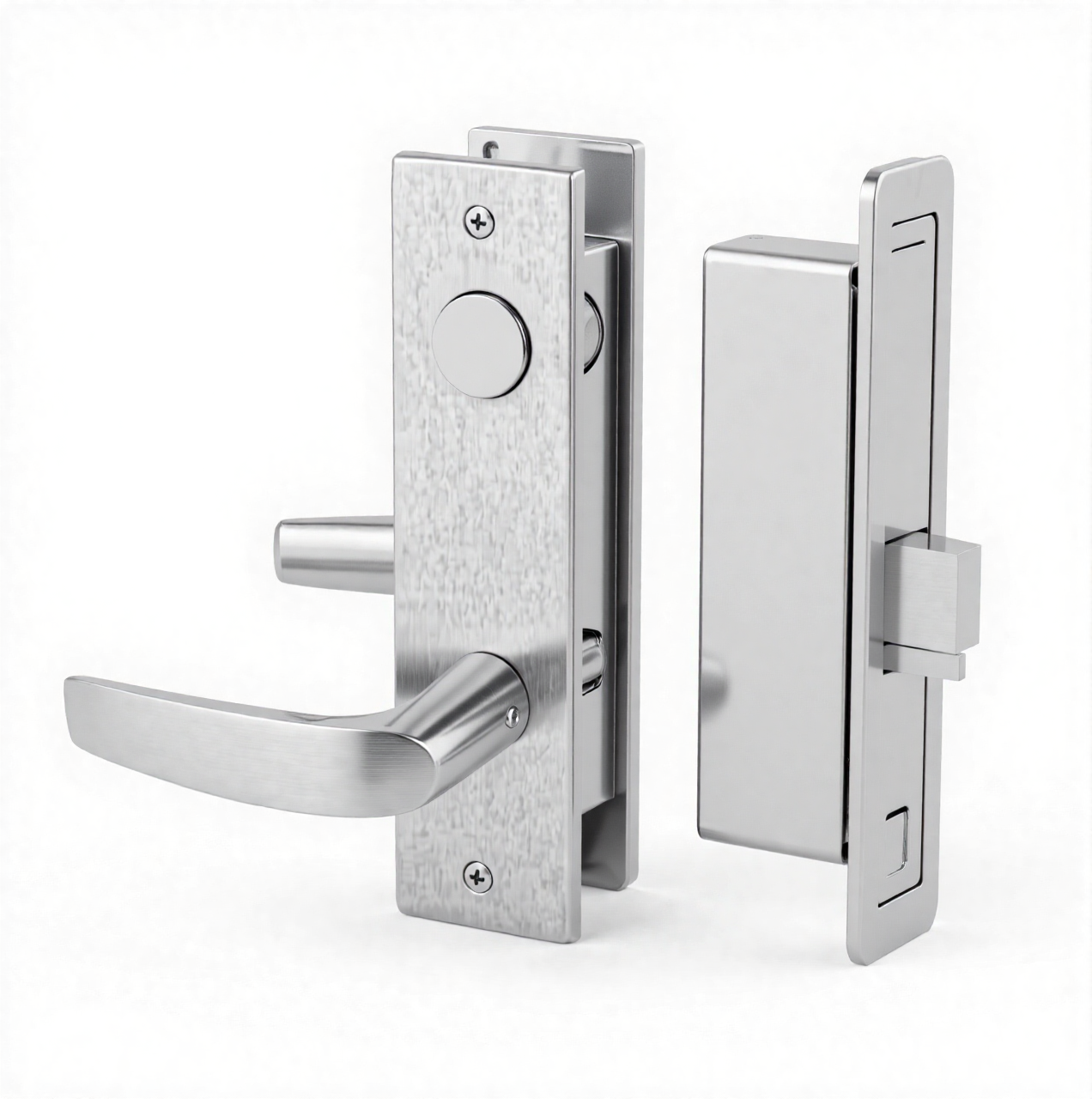

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
