Product Description

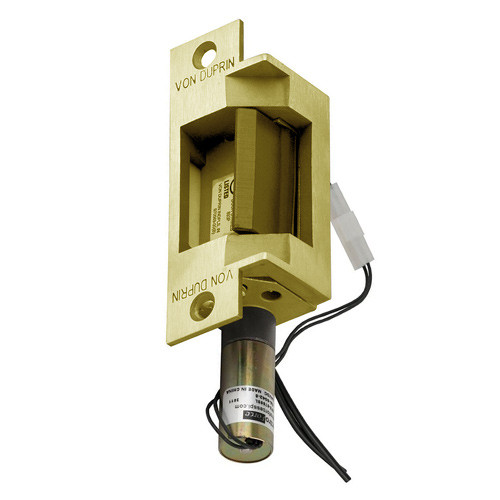

Von Duprin 6211 Electric Strike — Satin Brass
The Von Duprin 6211 is the most specified electric strike in the 6200 line — the standard ANSI cylindrical prep strike. Works with virtually any cylindrical lockset including Schlage ND, Corbin Russwin CL, Sargent 10-line, Yale AU, and Arrow. Heavy-duty stainless steel with integrated faceplate. Factory configured as fail safe — power cuts, strike releases. 24VDC operation. Fire rated UL 10C to 3 hours. If you're adding electric release to a standard bored-lock door, this is almost always the right strike.
⚡ Fail Safe vs. Fail Secure — What's the Difference?
Fail Safe — Strike unlocks when power is lost. The door can be opened freely during a power outage. Required on most fire-rated egress doors for life safety. This is the default for fire exits and emergency egress paths.
Fail Secure — Strike remains locked when power is lost. Key override is always available from outside. Used for server rooms, evidence rooms, or anywhere security must be maintained during a power failure. The mechanical push bar still allows free egress from inside.
Pro-Tip from Our Locksmiths: Make sure you check the latchbolt throw on the existing lockset before ordering. The 62xx series is designed for a 1/2" latch throw — if you've got a mortise lock with a 3/4" or 1" bolt, you need the 6221 instead. This is a 24VDC model — make sure your power supply matches. Von Duprin PS914 or PS904 are the go-to supplies for 24V strike installations.
| Brand | Von Duprin (Allegion) |
| Part Number | 6211-FS-24VDC-US4 |
| Series | Von Duprin 6211 |
| Application | Mortise or Cylindrical Locksets |
| Finish | Satin Brass (606/US4) |
| Mode | Fail Secure |
| Voltage | 24VDC |
| Faceplate | 4-7/8" |
| Latch Throw | 1/2" |
| Fire Rating | Non Fire Rated |
| Grade | ANSI/BHMA Grade 1 |
| Construction | Heavy-duty stainless steel body |
| Warranty | 3-year limited (electronic), Limited lifetime (mechanical) |
- Heavy-duty stainless steel construction — built for high-traffic commercial applications
- 4-7/8" faceplate with 1/2" latchbolt throw
- Fail Secure operation — remains locked on power loss, key override available
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Compatible With: Most ANSI-standard mortise and cylindrical locksets including Schlage L, Corbin Russwin ML2000, Sargent 8200, and Yale 8800 series. Replaces: Von Duprin 3081 — same prep, same cutout, direct drop-in replacement. Pair with a Von Duprin PS914 or PS904 power supply for a complete installation.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
