Product Description
Von Duprin 6211AL Electric Strike — Satin Bronze
The Von Duprin 6211AL is the aluminum-frame version of the 6211. Faceplate adjusts for 5/8" or 3/4" throw to handle the tighter tolerances in aluminum storefront frames. Same heavy-duty stainless internals as the standard 6211. Factory configured as fail secure with 24VDC operation. Works with cylindrical locksets in Adams Rite-style aluminum door frames. Fire rated UL 10C. When the frame is aluminum and you need a cylindrical strike, the 6211AL has the adjustable geometry to make it work.
⚡ Fail Safe vs. Fail Secure — What's the Difference?
Fail Safe — Strike unlocks when power is lost. The door can be opened freely during a power outage. Required on most fire-rated egress doors for life safety. This is the default for fire exits and emergency egress paths.
Fail Secure — Strike remains locked when power is lost. Key override is always available from outside. Used for server rooms, evidence rooms, or anywhere security must be maintained during a power failure. The mechanical push bar still allows free egress from inside.
Pro-Tip from Our Locksmiths: This is a Fail Safe strike — it unlocks on power loss for life safety egress. That's what you want on most fire-rated doors and emergency exits. If you need it to stay locked during a power outage, order the FS (Fail Secure) version instead. Make sure you check the latchbolt throw on the existing lockset before ordering. The 62xx series is designed for a 1/2" latch throw — if you've got a mortise lock with a 3/4" or 1" bolt, you need the 6221 instead.
| Brand | Von Duprin (Allegion) |
| Part Number | 6211AL-24VDC-US10 |
| Series | Von Duprin 6211AL |
| Application | Adams Rite Deadlocks/Deadlatches |
| Finish | Satin Bronze (612/US10) |
| Mode | Fail Safe |
| Voltage | 24VDC |
| Faceplate | 4-7/8" |
| Latch Throw | 1/2" |
| Fire Rating | Fire Rated — 3-Hour UL 10C Listed |
| Grade | ANSI/BHMA Grade 1 |
| Construction | Heavy-duty stainless steel body |
| Warranty | 3-year limited (electronic), Limited lifetime (mechanical) |
- Heavy-duty stainless steel construction — built for high-traffic commercial applications
- 4-7/8" faceplate with 1/2" latchbolt throw
- Fail Safe operation — unlocks on power loss for life safety egress
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Compatible With: Adams Rite MS1850, MS1860, 4500, 4700 series. Also works with many narrow stile locks from other manufacturers. Replaces: Von Duprin 3081-AL — same prep, same cutout, direct drop-in replacement. Pair with a Von Duprin PS914 or PS904 power supply for a complete installation.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

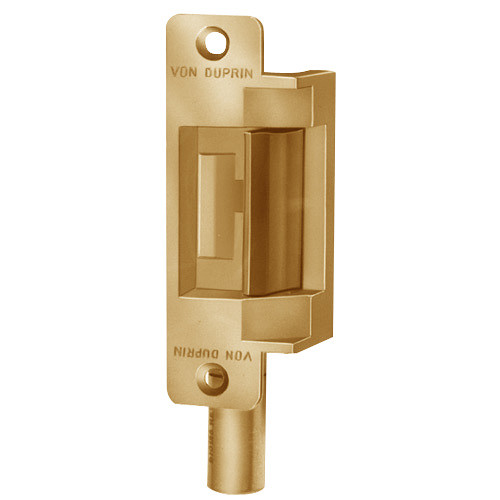

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
