Product Description

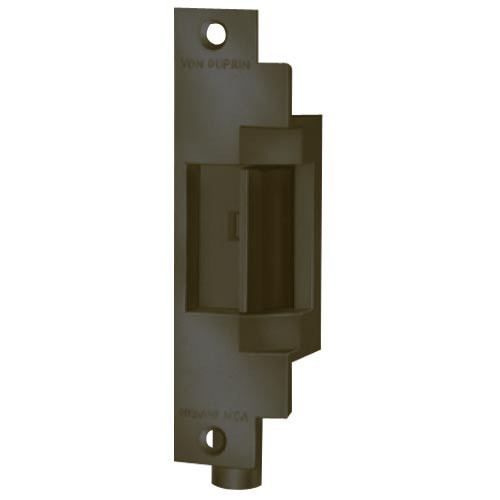

Von Duprin 6212 Electric Strike — Oil Rubbed Bronze
The Von Duprin 6212 is for ANSI round-cornered prep cylindrical locks. Same heavy-duty stainless construction as the 6211 but with a radiused faceplate to match round-corner strike preparations. Factory configured as fail secure with 12VDC operation. Fire rated UL 10C to 3 hours. If the door has a round-corner cutout instead of the standard square prep, this is the correct model. Don't try to force a 6211 into a round prep — use the 6212.
⚡ Fail Safe vs. Fail Secure — What's the Difference?
Fail Safe — Strike unlocks when power is lost. The door can be opened freely during a power outage. Required on most fire-rated egress doors for life safety. This is the default for fire exits and emergency egress paths.
Fail Secure — Strike remains locked when power is lost. Key override is always available from outside. Used for server rooms, evidence rooms, or anywhere security must be maintained during a power failure. The mechanical push bar still allows free egress from inside.
Pro-Tip from Our Locksmiths: This is a Fail Safe strike — it unlocks on power loss for life safety egress. That's what you want on most fire-rated doors and emergency exits. If you need it to stay locked during a power outage, order the FS (Fail Secure) version instead. The deadbolt monitoring on the 6212 tells you whether the mortise lock is deadbolted — not just whether the door is closed. That's critical for high-security applications where you need to verify the door is actually locked, not just latched.
| Brand | Von Duprin (Allegion) |
| Part Number | 6212-12VDC-US10B |
| Series | Von Duprin 6212 |
| Application | Mortise Locksets (Deadbolt Monitoring) |
| Finish | Oil Rubbed Bronze (613/US10B) |
| Mode | Fail Safe |
| Voltage | 12VDC |
| Faceplate | 4-7/8" |
| Latch Throw | 1/2" |
| Fire Rating | Fire Rated — 3-Hour UL 10C Listed |
| Grade | ANSI/BHMA Grade 1 |
| Construction | Heavy-duty stainless steel body |
| Warranty | 3-year limited (electronic), Limited lifetime (mechanical) |
- Heavy-duty stainless steel construction — built for high-traffic commercial applications
- 4-7/8" faceplate with 1/2" latchbolt throw
- Fail Safe operation — unlocks on power loss for life safety egress
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Compatible With: Mortise locksets with deadbolt — Schlage L, Corbin Russwin ML2200, Sargent 8200, Yale 8800 with deadbolt. Replaces: Von Duprin 3082 — same prep, same cutout, direct drop-in replacement. Pair with a Von Duprin PS914 or PS904 power supply for a complete installation.
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
