Product Description

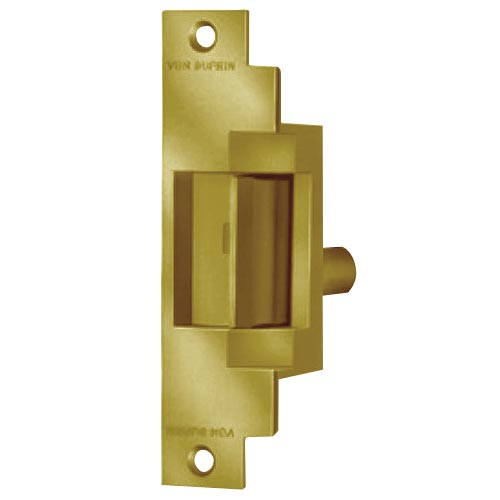

Von Duprin 6212WF Electric Strike — Satin Brass
The Von Duprin 6212WF combines the round-corner prep of the 6212 with an oversized wide faceplate. Built for retrofit jobs where you need to cover a larger cutout on a round-prep frame. Same stainless internals. Equipped with a dual signal low-current switch for monitoring systems requiring minimal current draw. Factory configured as fail secure with 12VDC operation. Fire rated UL 10C. When the existing round-corner cutout is oversized or damaged, this wide face covers it without blocking or frame repair.
⚡ Fail Safe vs. Fail Secure — What's the Difference?
Fail Safe — Strike unlocks when power is lost. The door can be opened freely during a power outage. Required on most fire-rated egress doors for life safety. This is the default for fire exits and emergency egress paths.
Fail Secure — Strike remains locked when power is lost. Key override is always available from outside. Used for server rooms, evidence rooms, or anywhere security must be maintained during a power failure. The mechanical push bar still allows free egress from inside.
Pro-Tip from Our Locksmiths: The deadbolt monitoring on the 6212 tells you whether the mortise lock is deadbolted — not just whether the door is closed. That's critical for high-security applications where you need to verify the door is actually locked, not just latched.
| Brand | Von Duprin (Allegion) |
| Part Number | 6212WF-DS-LC-12VDC-US4 |
| Series | Von Duprin 6212WF |
| Application | Mortise Locksets (Deadbolt Monitoring, Wide Faceplate) |
| Finish | Satin Brass (606/US4) |
| Mode | Fail Secure |
| Voltage | 12VDC |
| Monitoring | Dual Switch with Latch Monitoring |
| Faceplate | Wide (oversized) |
| Latch Throw | 1/2" |
| Fire Rating | Fire Rated — 3-Hour UL 10C Listed |
| Grade | ANSI/BHMA Grade 1 |
| Construction | Heavy-duty stainless steel body |
| Warranty | 3-year limited (electronic), Limited lifetime (mechanical) |
- Heavy-duty stainless steel construction — built for high-traffic commercial applications
- Wide (oversized) faceplate with 1/2" latchbolt throw
- Fail Secure operation — remains locked on power loss, key override available
- Dual signal switch with dedicated latch bolt monitoring
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Compatible With: Same as 6212 — covers oversized preps. Pair with a Von Duprin PS914 or PS904 power supply for a complete installation.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
