Product Description
Von Duprin 6214 Electric Strike — Satin Brass
The Von Duprin 6214 has a compact body designed specifically for 1-3/4" door applications where frame depth is tight. Same heavy-duty stainless construction as the rest of the 6200 line. Factory configured as fail safe with dual signal monitoring switch. 12VDC operation. Fire rated UL 10C. When the frame won't accept a standard-depth strike body, the 6214's shallow profile gets the job done. Check your frame depth before ordering.
⚡ Fail Safe vs. Fail Secure — What's the Difference?
Fail Safe — Strike unlocks when power is lost. The door can be opened freely during a power outage. Required on most fire-rated egress doors for life safety. This is the default for fire exits and emergency egress paths.
Fail Secure — Strike remains locked when power is lost. Key override is always available from outside. Used for server rooms, evidence rooms, or anywhere security must be maintained during a power failure. The mechanical push bar still allows free egress from inside.
Pro-Tip from Our Locksmiths: Von Duprin strikes are workhorses — we see these on everything from hospitals to schools. Keep your power supply clean and your frame prep tight, and these will outlast the door.
| Brand | Von Duprin (Allegion) |
| Part Number | 6214-FS-DS-12VDC-US4 |
| Series | Von Duprin 6214 |
| Application | Cylindrical Locksets (Deadlatch) |
| Finish | Satin Brass (606/US4) |
| Mode | Fail Secure |
| Voltage | 12VDC |
| Monitoring | Dual Switch |
| Faceplate | 4-7/8" |
| Latch Throw | 1/2" |
| Fire Rating | Non Fire Rated |
| Grade | ANSI/BHMA Grade 1 |
| Construction | Heavy-duty stainless steel body |
| Warranty | 3-year limited (electronic), Limited lifetime (mechanical) |
- Heavy-duty stainless steel construction — built for high-traffic commercial applications
- 4-7/8" faceplate with 1/2" latchbolt throw
- Fail Secure operation — remains locked on power loss, key override available
- Dual signal switch for door position and latch monitoring
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Compatible With: Cylindrical locksets with 1/2" deadlatch throw — Schlage ND, Arrow, Sargent 10-line, Yale 5400. Pair with a Von Duprin PS914 or PS904 power supply for a complete installation.
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

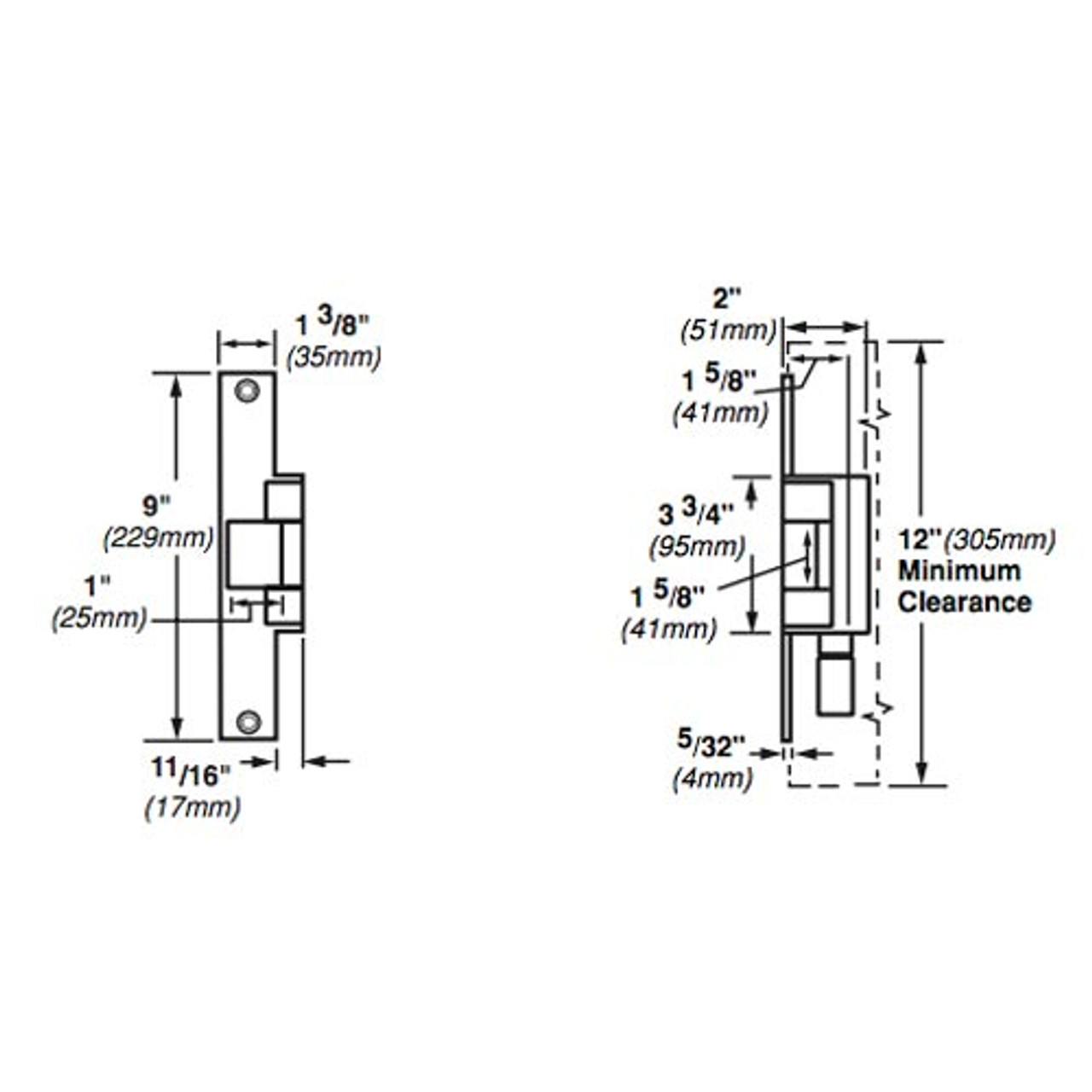

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
