Product Description

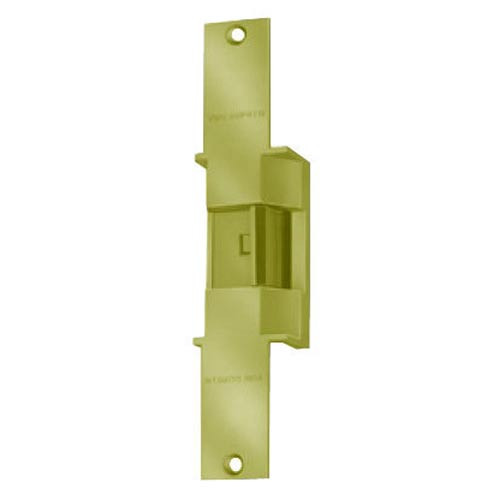

Von Duprin 6214 Electric Strike — Bright Brass
The Von Duprin 6214 has a compact body designed specifically for 1-3/4" door applications where frame depth is tight. Same heavy-duty stainless construction as the rest of the 6200 line. Factory configured as fail safe with dual signal low-current monitoring switch. 12VDC operation. Fire rated UL 10C. When the frame won't accept a standard-depth strike body, the 6214's shallow profile gets the job done. Check your frame depth before ordering.
⚡ Fail Safe vs. Fail Secure — What's the Difference?
Fail Safe — Strike unlocks when power is lost. The door can be opened freely during a power outage. Required on most fire-rated egress doors for life safety. This is the default for fire exits and emergency egress paths.
Fail Secure — Strike remains locked when power is lost. Key override is always available from outside. Used for server rooms, evidence rooms, or anywhere security must be maintained during a power failure. The mechanical push bar still allows free egress from inside.
Pro-Tip from Our Locksmiths: Running 12VDC — the PS914 power supply handles both 12V and 24V output, so it's the most versatile option if you're stocking truck supplies.
| Brand | Von Duprin (Allegion) |
| Part Number | 6214-FS-DS-LC-12VDC-US3 |
| Series | Von Duprin 6214 |
| Application | Cylindrical Locksets (Deadlatch) |
| Finish | Bright Brass (605/US3) |
| Mode | Fail Secure |
| Voltage | 12VDC |
| Monitoring | Dual Switch |
| Faceplate | 4-7/8" |
| Latch Throw | 1/2" |
| Fire Rating | Non Fire Rated |
| Grade | ANSI/BHMA Grade 1 |
| Construction | Heavy-duty stainless steel body |
| Warranty | 3-year limited (electronic), Limited lifetime (mechanical) |
- Heavy-duty stainless steel construction — built for high-traffic commercial applications
- 4-7/8" faceplate with 1/2" latchbolt throw
- Fail Secure operation — remains locked on power loss, key override available
- Dual signal switch for door position and latch monitoring
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Compatible With: Cylindrical locksets with 1/2" deadlatch throw — Schlage ND, Arrow, Sargent 10-line, Yale 5400. Pair with a Von Duprin PS914 or PS904 power supply for a complete installation.
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
