Product Description

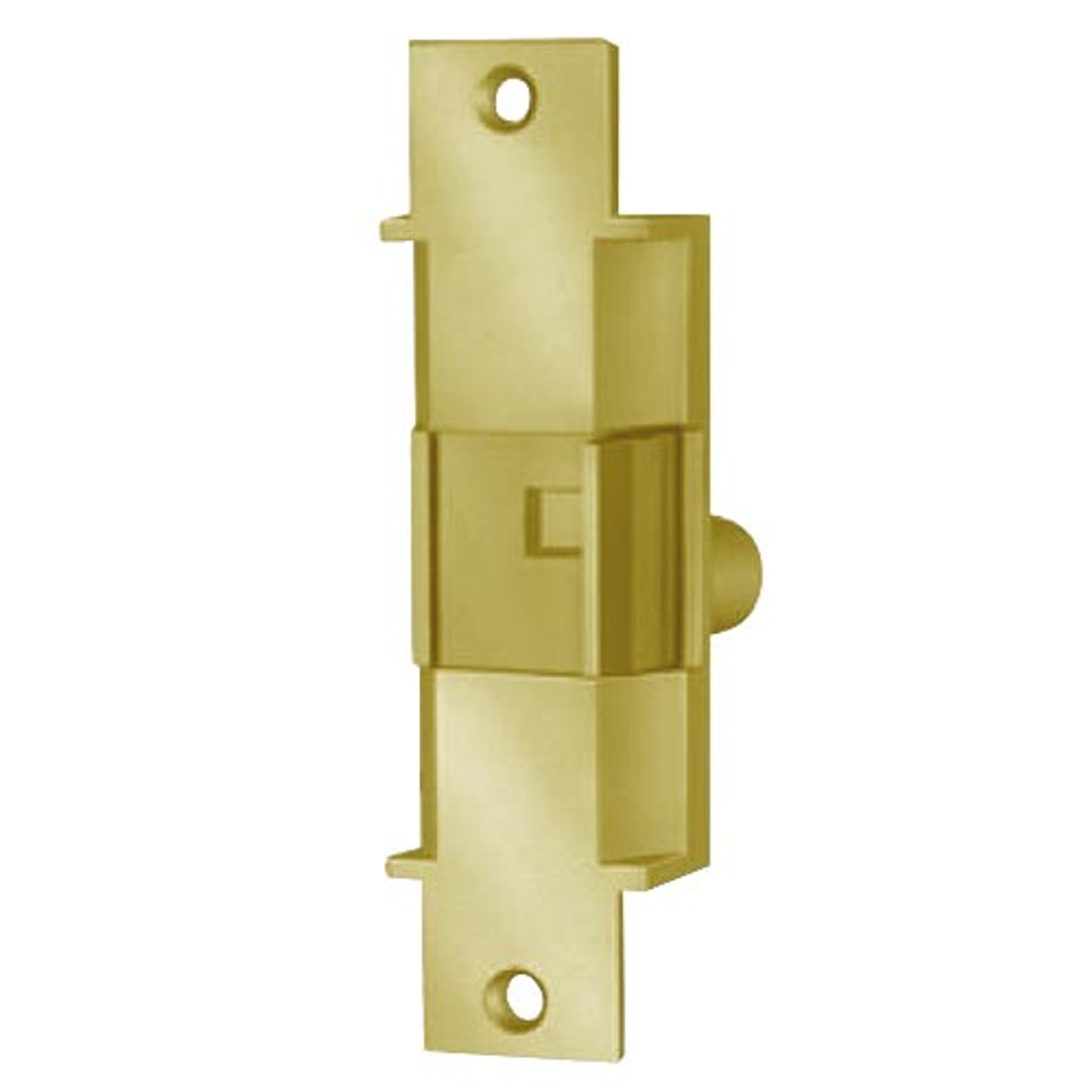

Von Duprin 6221 Electric Strike — Satin Brass
The Von Duprin 6221 is an open-back electric strike for cylindrical locks on 1-3/4" doors. The open-back design provides clearance for deadbolts or extended-throw latchbolts that need room behind the strike. Factory configured as fail secure with 12VDC operation. Fire rated UL 10C. When a standard closed-back strike like the 6211 blocks the bolt throw, the 6221's open back solves it.
⚡ Fail Safe vs. Fail Secure — What's the Difference?
Fail Safe — Strike unlocks when power is lost. The door can be opened freely during a power outage. Required on most fire-rated egress doors for life safety. This is the default for fire exits and emergency egress paths.
Fail Secure — Strike remains locked when power is lost. Key override is always available from outside. Used for server rooms, evidence rooms, or anywhere security must be maintained during a power failure. The mechanical push bar still allows free egress from inside.
Pro-Tip from Our Locksmiths: This is a Fail Safe strike — it unlocks on power loss for life safety egress. That's what you want on most fire-rated doors and emergency exits. If you need it to stay locked during a power outage, order the FS (Fail Secure) version instead. Running 12VDC — the PS914 power supply handles both 12V and 24V output, so it's the most versatile option if you're stocking truck supplies.
| Brand | Von Duprin (Allegion) |
| Part Number | 6221-12VDC-US4 |
| Series | Von Duprin 6221 |
| Application | Mortise Locksets (1" Deadbolt) |
| Finish | Satin Brass (606/US4) |
| Mode | Fail Safe |
| Voltage | 12VDC |
| Faceplate | 4-7/8" |
| Latch Throw | 1" |
| Fire Rating | Fire Rated — 3-Hour UL 10C Listed |
| Grade | ANSI/BHMA Grade 1 |
| Construction | Heavy-duty stainless steel body |
| Warranty | 3-year limited (electronic), Limited lifetime (mechanical) |
- Heavy-duty stainless steel construction — built for high-traffic commercial applications
- 4-7/8" faceplate with 1" latchbolt throw
- Fail Safe operation — unlocks on power loss for life safety egress
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Compatible With: Mortise locksets with 1" deadbolt throw. Pair with a Von Duprin PS914 or PS904 power supply for a complete installation.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
