Product Description

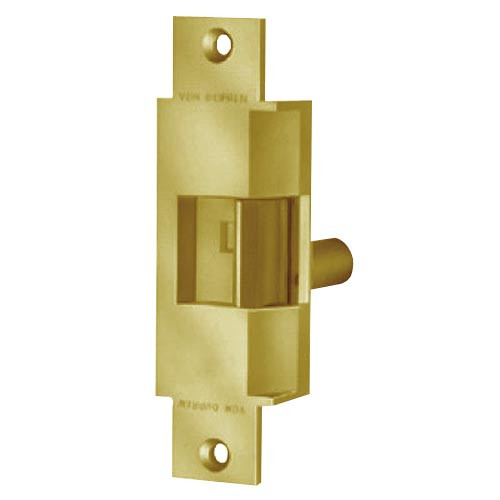

Von Duprin 6223 Electric Strike — Satin Brass
The Von Duprin 6223 directly replaces the older Von Duprin 3091 and 3092 strikes. Same prep, same holes — no frame modification. Upgraded stainless steel body with modern electronics. Factory configured as fail safe with dual signal low-current monitoring switch. 24VDC operation. Fire rated UL 10C. If you've got VD 3091s or 3092s in the building, this is the factory-blessed replacement.
⚡ Fail Safe vs. Fail Secure — What's the Difference?
Fail Safe — Strike unlocks when power is lost. The door can be opened freely during a power outage. Required on most fire-rated egress doors for life safety. This is the default for fire exits and emergency egress paths.
Fail Secure — Strike remains locked when power is lost. Key override is always available from outside. Used for server rooms, evidence rooms, or anywhere security must be maintained during a power failure. The mechanical push bar still allows free egress from inside.
Pro-Tip from Our Locksmiths: If you're pulling out old VD 3091s or 3092s, the 6223 drops right in. Same prep, same screw holes. Saves a lot of time on retrofit jobs. This is a 24VDC model — make sure your power supply matches. Von Duprin PS914 or PS904 are the go-to supplies for 24V strike installations.
| Brand | Von Duprin (Allegion) |
| Part Number | 6223-FS-DS-LC-24VDC-US4 |
| Series | Von Duprin 6223 |
| Application | Mortise or Cylindrical Locksets |
| Finish | Satin Brass (606/US4) |
| Mode | Fail Secure |
| Voltage | 24VDC |
| Monitoring | Dual Switch |
| Faceplate | 4-7/8" |
| Latch Throw | 1/2" |
| Fire Rating | Non Fire Rated |
| Grade | ANSI/BHMA Grade 1 |
| Construction | Heavy-duty stainless steel body |
| Warranty | 3-year limited (electronic), Limited lifetime (mechanical) |
- Heavy-duty stainless steel construction — built for high-traffic commercial applications
- 4-7/8" faceplate with 1/2" latchbolt throw
- Fail Secure operation — remains locked on power loss, key override available
- Dual signal switch for door position and latch monitoring
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Compatible With: Most ANSI-standard mortise and cylindrical locksets. Replaces: Von Duprin 3091, 3092 — same prep, same cutout, direct drop-in replacement. Pair with a Von Duprin PS914 or PS904 power supply for a complete installation.
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
