Product Description
Outside lever always locked, key required every time. Inside always free. Same Storeroom function as a mortise lock, but in a cylindrical body that installs in minutes.

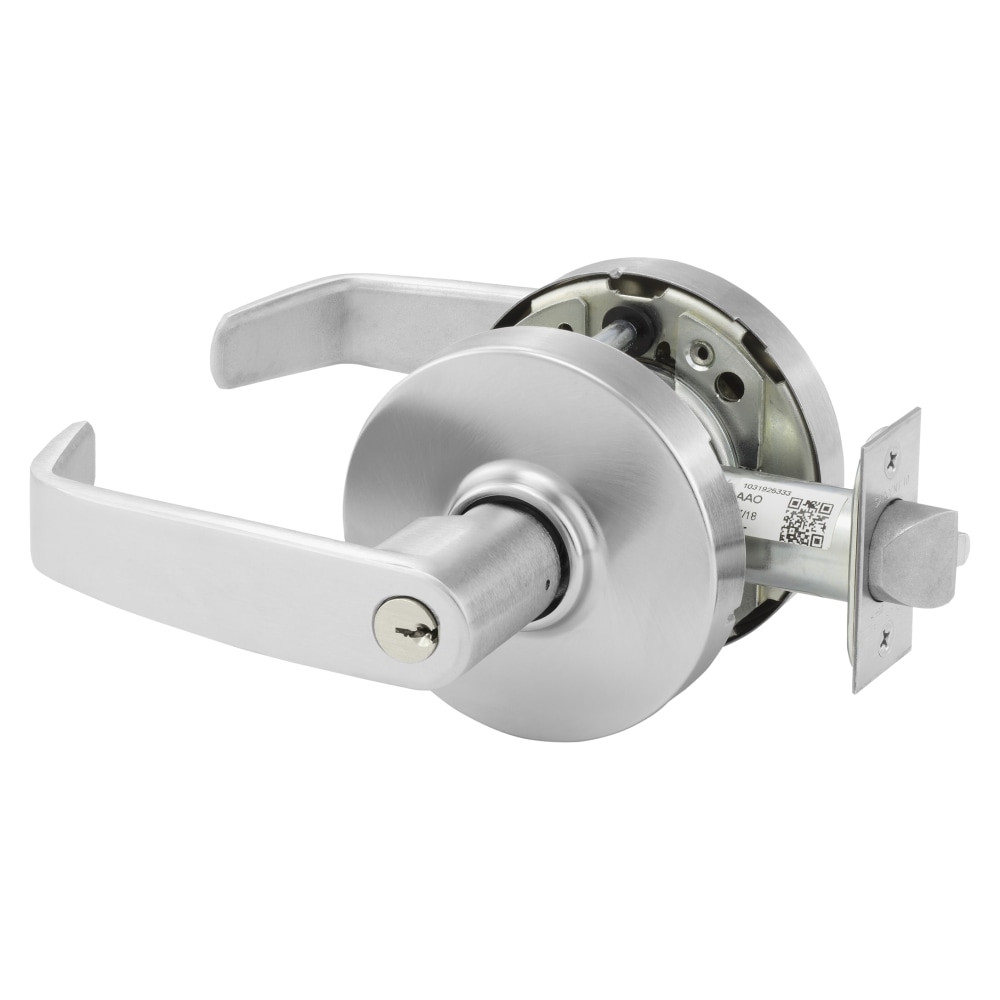

The Sargent 70-10XG04-LP-10 is a Grade 1 cylindrical lock from the 10X Line with Storeroom function — outside lever always locked, key required every entry. Inside always free.
| SKU Breakdown: 70-10XG04-LP-10 | |
| 70 | Backset/chassis configuration |
| 10XG04 | Series and Storeroom function |
| LP | Lever/rose design: LP |
| 10 | Finish: Satin Bronze |
This unit comes with L Rose, P Lever in Satin Bronze — Satin Bronze finish. Cylindrical locks install in a standard 2-1/8" bore hole — no mortise pocket required. Fastest commercial lock to install.
| Certification | ANSI A156.2, BHMA Grade 1 |
| Backset | 2-3/4" |
| Warranty | 7-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating for cylindrical locks
- Standard 2-1/8" bore — fast install, no mortise pocket needed
- Through-bolt mounting for maximum resistance to lever torque attacks
- Satin Bronze finish
- Field reversible — works on any swing direction
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every lock ships brand new in factory-sealed packaging with the full manufacturer warranty. We've been selling and installing Sargent hardware for over 20 years — if you need help specifying the right lock for your opening, call us at (877) 365-5625. We speak locksmith.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
