Product Description
Supply closets, utility rooms, server rooms, pharmaceutical storage — anywhere you never want someone leaving the door unlocked. That's Storeroom function.

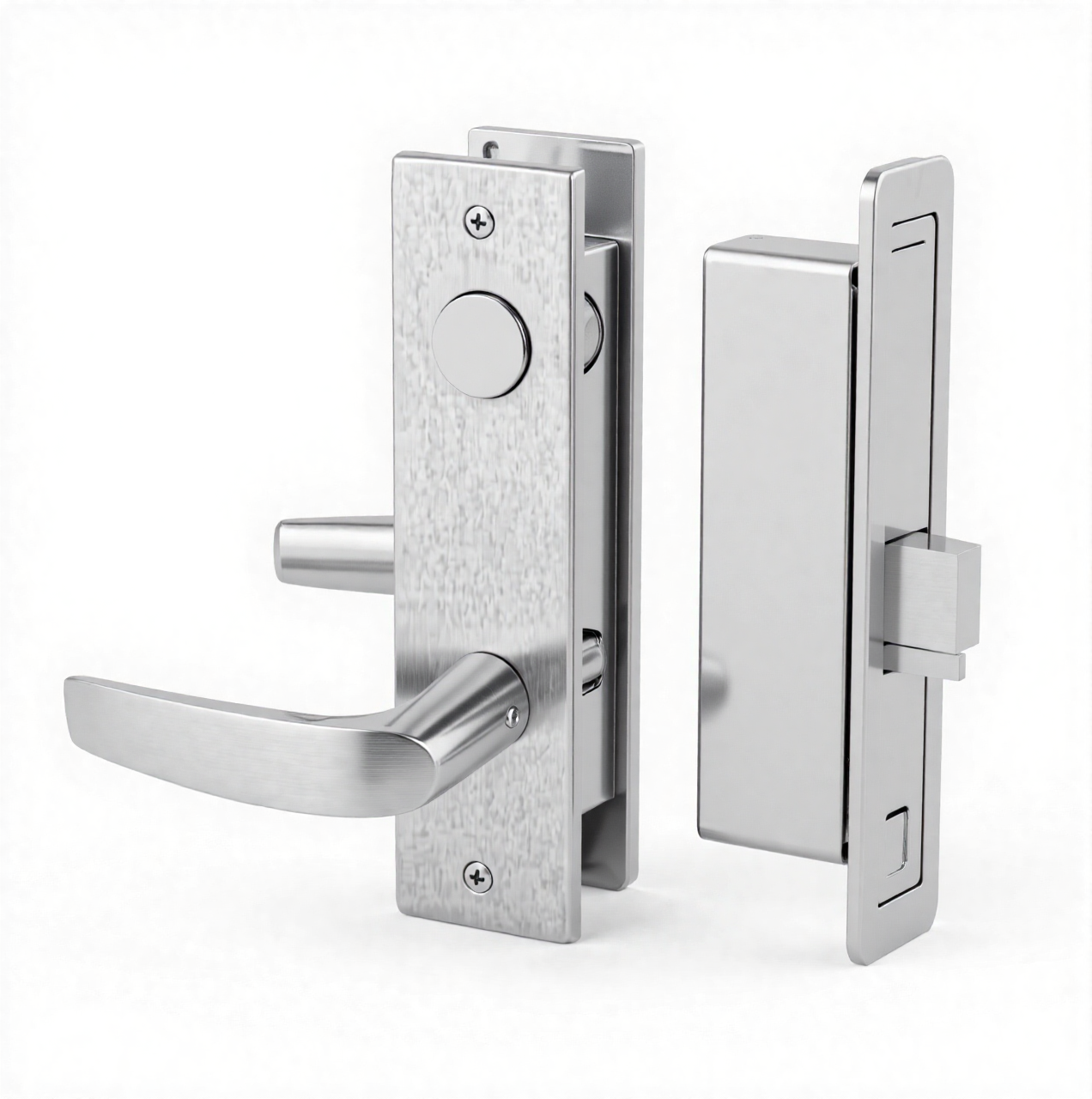

The Sargent 70-8204-LW1L-26D is a Storeroom function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Storeroom function means the outside lever is always locked — you need a key every single time you enter. Inside lever is always free for egress. No one can accidentally leave this door unlocked.
| SKU Breakdown: 70-8204-LW1L-26D | |
| 70 | Series 8200, Storeroom function |
| 8204 | Configuration: 8204 |
| LW1L | Trim code: LW1L |
| 26D | Finish: Satin Chrome |
This one comes with LW1 Escutcheon, L Lever in Satin Chrome — the 26D finish you see on 90% of commercial jobs because it hides fingerprints, resists wear, and matches every other piece of hardware in the building. When in doubt, 26D is the safe bet.
The L lever is Sargent's straight-design commercial lever — clean lines, ADA compliant, gets the job done without drawing attention to itself. The lever that disappears into the building.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LW1 Escutcheon, L Lever — Sargent commercial trim
- Satin Chrome (US26D/626) — the industry standard commercial finish, hides fingerprints and matches existing hardware
- Field reversible — works on left or right hand doors without modification
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
Why Buy From Lock Depot? — We're locksmiths, not just an online store. Every order is reviewed by someone who knows the difference between Fail Safe and Fail Secure, who can tell you which trim fits your prep, and who'll pick up the phone at (877) 365-5625 if something doesn't look right. Authorized Sargent dealer. Full manufacturer warranty. Same day shipping.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
