    • 70-8227-LW1L-10B Sargent 8200 Series Storeroom Mortise Lock in Oil Rubbed Bronze

    Sargent

    MSRP: $1,782.00
    $993.11
    (You save $788.89 )
    SKU:
    70-8227-LW1L-10B
    Condition:
    New
    Availability:
    available
    Product Type:
    Mortise Lock
    Function:
    Storeroom
    Series:
    8200
    Finish:
    Oil Rubbed Bronze
    Trim:
    LW1 Escutcheon, L Lever
    Cylinder:
    SFIC
    Mount Type:
    Mortise
    Fire Rated:
    Fire Rated
    Adding to cart… category.add_cart_announcement

    Product Description

    Need a door that stays locked 24/7 with no exceptions? The Storeroom function is the most specified lock function in commercial hardware — and for good reason.

    The Sargent 70-8227-LW1L-10B is a Storeroom function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Storeroom function means the outside lever is always locked — you need a key every single time you enter. Inside lever is always free for egress. No one can accidentally leave this door unlocked.

    SKU Breakdown: 70-8227-LW1L-10B
    70Series 8200, Storeroom function
    8227Configuration: 8227
    LW1LTrim code: LW1L
    10BFinish: Oil Rubbed Bronze
    SFIC Prep — Ships Less Core — This lock is prepped for Small Format Interchangeable Core. Order your SFIC core separately to match your building's key system. The core drops into the figure-8 housing with a control key — instant rekey without removing the lock from the door.

    This one comes with LW1 Escutcheon, L Lever in Oil Rubbed Bronze — the 10B finish with a living patina that develops character over time. Popular in boutique hotels, upscale restaurants, and residential-feeling commercial spaces.

    The L lever is Sargent's straight-design commercial lever — clean lines, ADA compliant, gets the job done without drawing attention to itself. The lever that disappears into the building.

    Pro-Tip from Our Locksmiths: Don't confuse Storeroom with Entry/Office. Storeroom relocks every time the door closes — you need your key for every entry. Entry/Office stays unlocked after one key turn until you manually relock it. We get this call at least once a week: "My lock keeps locking me out!" — that's Storeroom working exactly as designed.
    CertificationANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating)
    Backset2-3/4"
    Face Size8" x 1-1/4"
    Warranty10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477.
    • ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
    • 3-hour fire rated — UL 10C listed for positive pressure fire test
    • LW1 Escutcheon, L Lever — Sargent commercial trim
    • Oil Rubbed Bronze finish
    • Field reversible — works on left or right hand doors without modification

    Related Products:

    Ships Same Day — Order before 2PM EST and your Sargent hardware ships the same business day. Lock Depot is an authorized Sargent distributor — every product includes the full manufacturer warranty. Questions? Call (877) 365-5625 or contact us online.

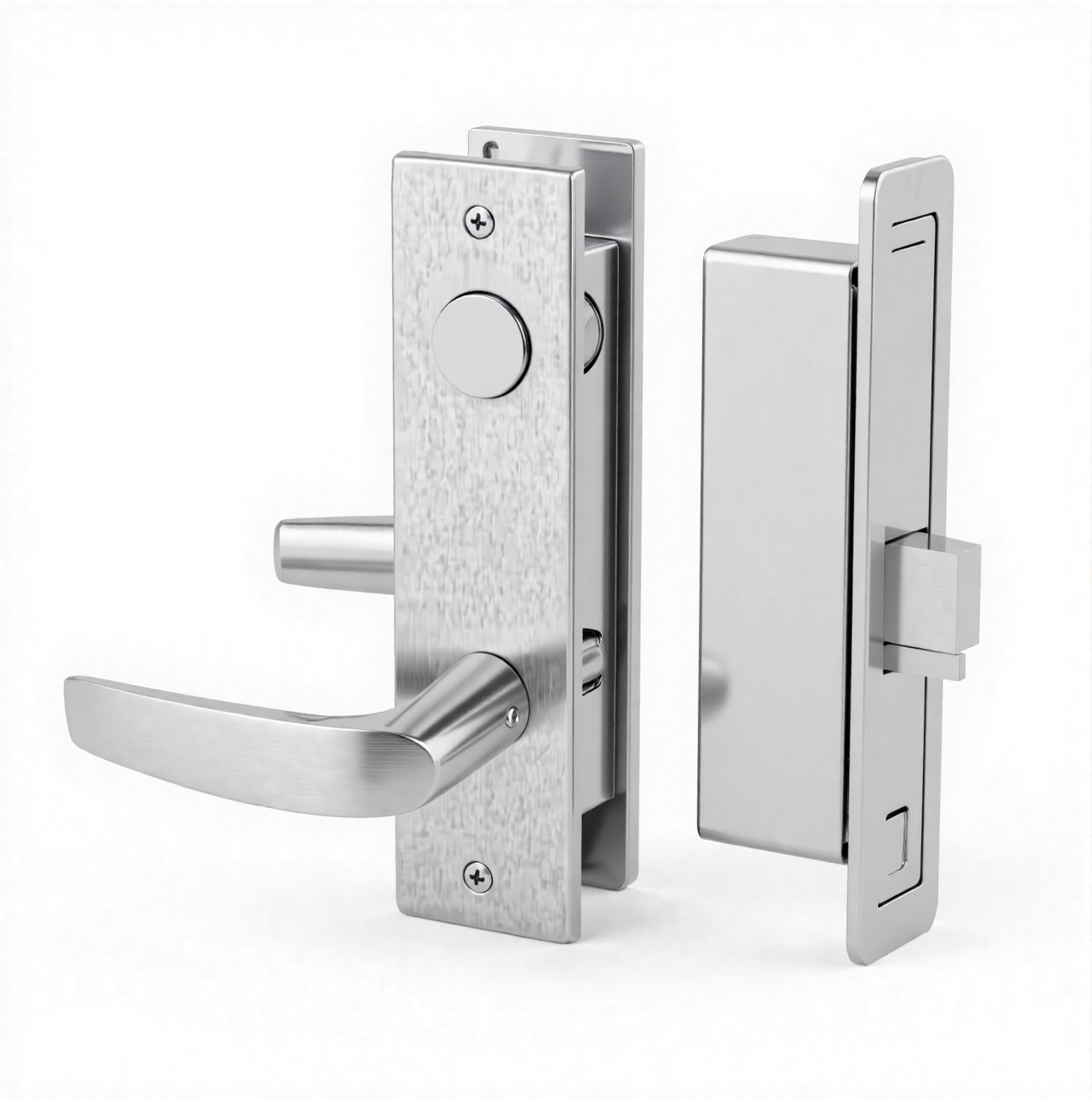

    Image shown is representative of this product line. Actual product matches your selected finish and configuration.

    Warranty Information

    Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.

    Product Videos

    Custom Field

    Product Type Mortise Lock
    Function Storeroom
    Series 8200
    Finish Oil Rubbed Bronze
    Trim LW1 Escutcheon, L Lever
    Cylinder SFIC
    Mount Type Mortise
    Fire Rated Fire Rated
