Product Description
Every school, hospital, and government building running access control needs electrified locks — and Fail Safe is required by code on fire-rated egress paths. This is that lock.
The Sargent 70-8272-24V-OA-26D-RH is a Fail Safe function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Fail Safe electric operation wired for 24VDC from your access control panel, card reader, or keypad system. The lock retracts the latch automatically when power is cut — code-required on fire-rated egress doors.
This one comes with O Rose, A Lever in Satin Chrome — the 26D finish you see on 90% of commercial jobs because it hides fingerprints, resists wear, and matches every other piece of hardware in the building. When in doubt, 26D is the safe bet.
| Handing | Right Hand |
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 3-Year Limited (electromechanical). Mechanical components: 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- O Rose, A Lever — Sargent commercial trim
- Satin Chrome (US26D/626) — the industry standard commercial finish, hides fingerprints and matches existing hardware
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
- Sargent Electrified Mortise Locks — Compare Fail Safe vs. Fail Secure
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every lock ships brand new in factory-sealed packaging with the full manufacturer warranty. We've been selling and installing Sargent hardware for over 20 years — if you need help specifying the right lock for your opening, call us at (877) 365-5625. We speak locksmith.

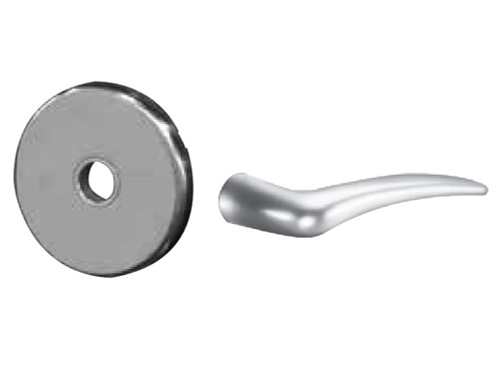

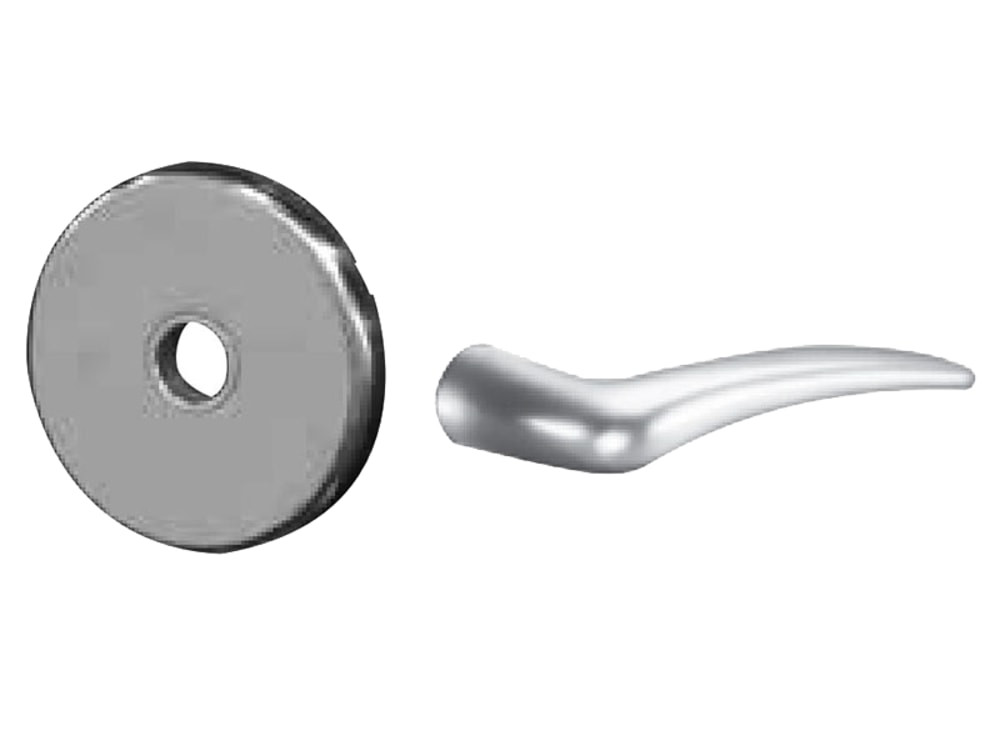

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
