Product Description

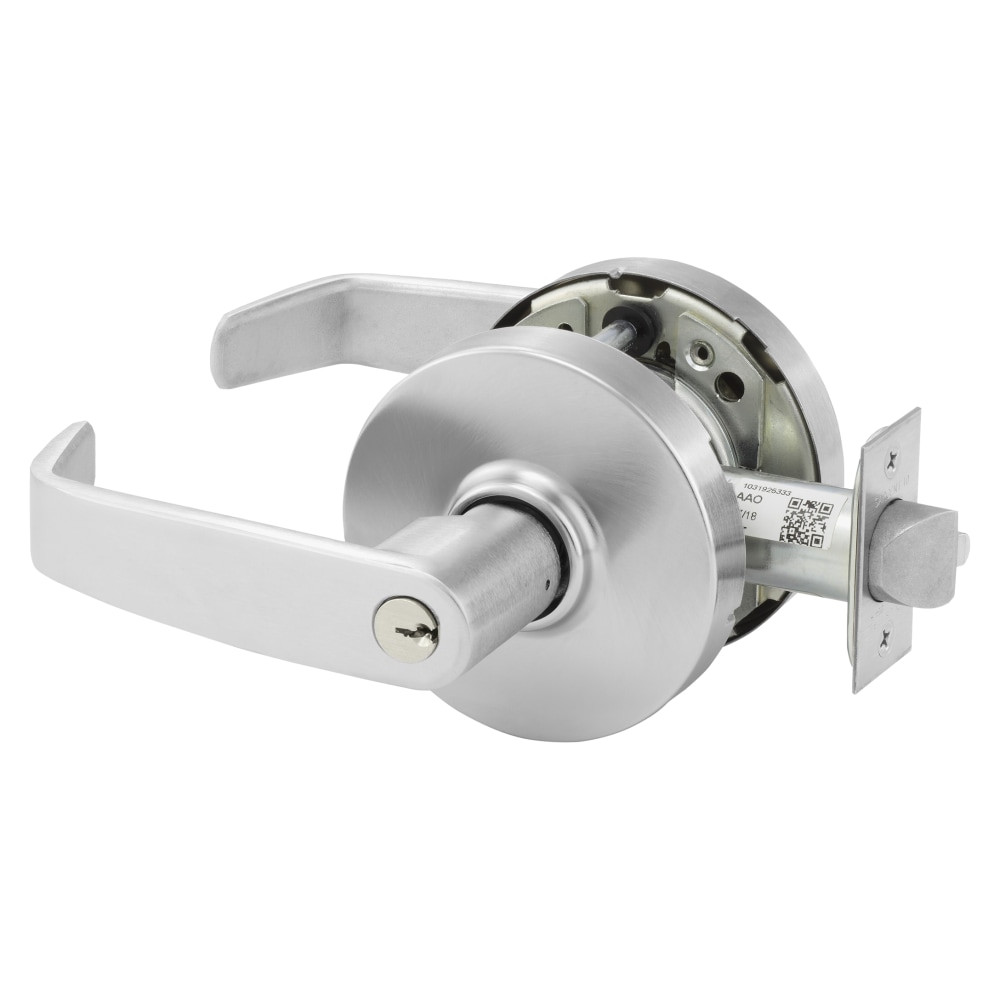

The Sargent 70-KP10XG77-LP-26D is a 10 Line cylindrical lock with function in Satin Chrome (US26D/626). Grade 1 certified for heavy commercial use.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 70-KP10XG77-LP-26D | |
| 70 | Backset/chassis configuration |
| KP10XG77 | Series and function code |
| LP | Lever/rose design: LP |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: The 10 Line is Sargent's workhorse cylindrical lock. If you need something that handles heavy traffic without mortise lock pricing, this is your spec.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 70-KP10XG77-LP-26D |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Satin Chrome (US26D/626) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
