Product Description
The Sargent 70RX-8270-24V-WTL-32 is a 8200 Series Fail Safe mortise lock in Bright Stainless (US32/629). Unlocks on power loss for life safety egress.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 70RX-8270-24V-WTL-32 | |
| 70RX | Series 8200, Fail Safe function |
| 8270 | Trim/lever design: WT Escutcheon, L Lever |
| 24V | Finish: Bright Stainless |
| WTL | Configuration modifier |
| 32 | Configuration modifier |
Pro-Tip from Our Locksmiths: If you're bidding against Schlage L-Series on a commercial job, the 8200 wins on durability. The Sargent chassis is thicker gauge and the hub mechanism has less play after heavy use.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 70RX-8270-24V-WTL-32 |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Trim / Lever | WT Escutcheon, L Lever |
| Finish | Bright Stainless (US32/629) |
| Mount Type | Mortise |
| Cylinder | SFIC |
| Fire Rating | Fire Rated — UL Listed |
| Voltage | 24VDC |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Safe function — Unlocks on power loss for life safety egress.
- Bright Stainless (US32/629) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

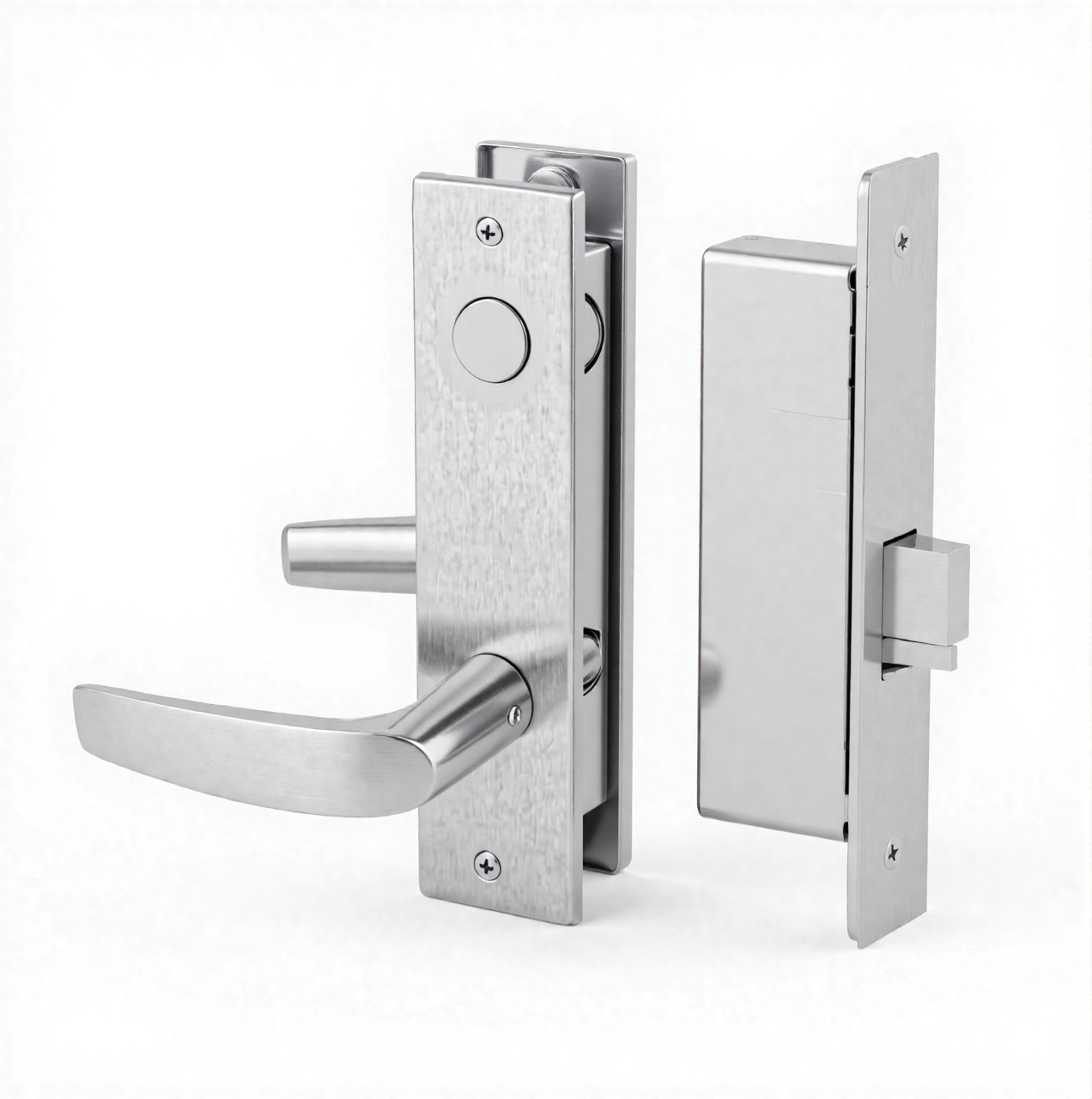

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 3-year limited warranty on electromechanical components and a 10-year limited warranty on mechanical components of mortise locks, covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Fail Safe
Series 8200
Finish Bright Stainless
Trim WT Escutcheon, L Lever
Cylinder SFIC
Mount Type Mortise
Fire Rated Fire Rated
Voltage 24VDC
Mode Fail Safe
