Product Description

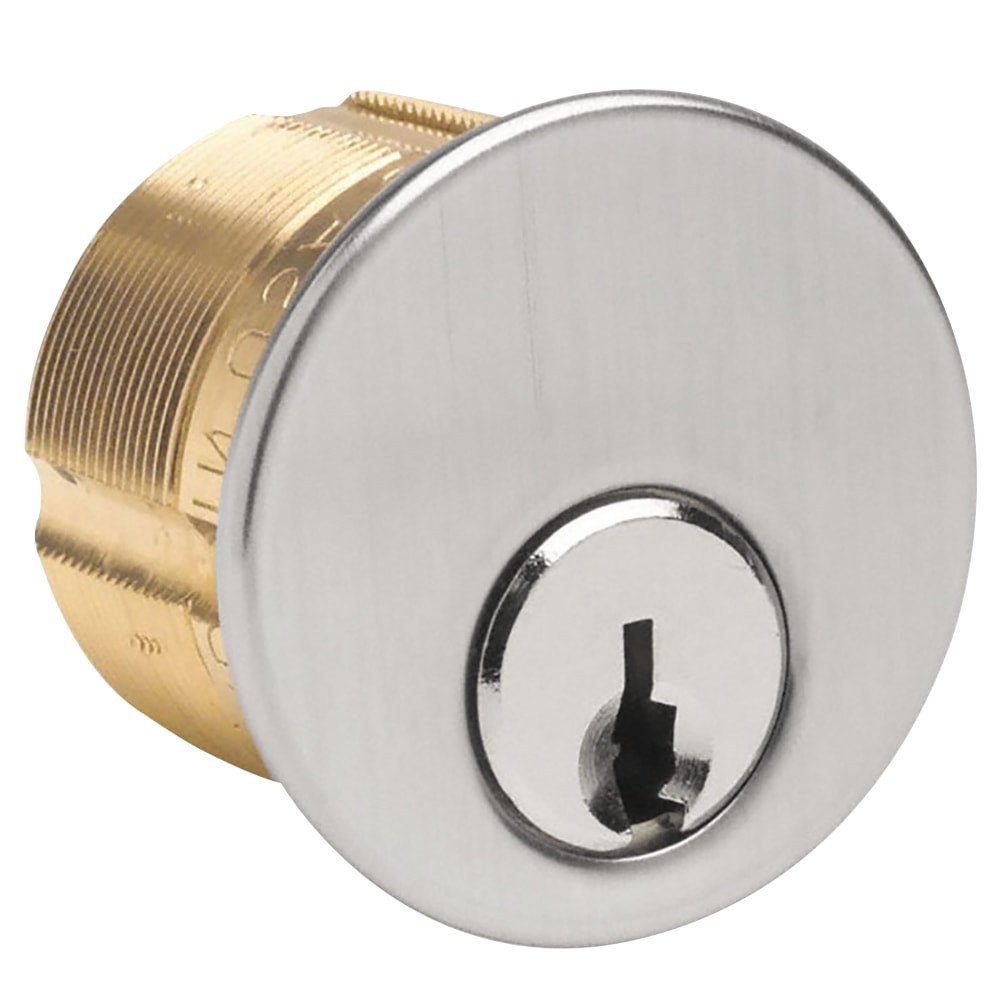

Replacing a worn-out mortise cylinder or rekeying a building? The Ilco 7205GA7-26D-KD is a 5-Pin 1-1/4" mortise cylinder for Sargent LA keyway in Satin Chrome (US26D/626). This is the bread-and-butter cylinder every commercial locksmith stocks — it fits standard mortise locksets from Schlage, Yale, Corbin Russwin, Sargent, and others.
Ships keyed different with Falcon Cam. Drop-in replacement for any ANSI A156.5 standard mortise cylinder pocket.
Pro-Tip from Our Locksmiths: For Adams Rite storefront locks, make sure you're ordering the correct cam — Cam #1 for Adams Rite, not the generic straight cam. Wrong cam on a narrow stile door means the bolt won't throw fully.
| Brand | Kaba Ilco (dormakaba) |
| Part Number | 7205GA7-26D-KD |
| Cylinder Length | 1-1/4" |
| Pin Count | 5-Pin |
| Keyway | Sargent LA |
| Cam | Falcon Cam |
| Finish | Satin Chrome (US26D/626) |
| Keying | Keyed Different |
| Warranty | 3 years limited manufacturer's warranty |
What's in the Box:
- Mortise cylinder
- 2 keys
- Falcon Cam
- Trim ring
- 1-1/4" length — fits standard mortise locksets
- 5-Pin cylinder — Sargent LA keyway
- Ships with Falcon Cam — ready to install
- Includes 2 keys and trim ring
- In stock at Lock Depot — ships same day on orders before 3 PM EST
Works With: Standard ANSI A156.5 mortise locksets from Sargent — Schlage, Yale, Corbin Russwin, Sargent, Arrow, and others. Order matching solid brass collar and correct cam for your specific lock brand.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
