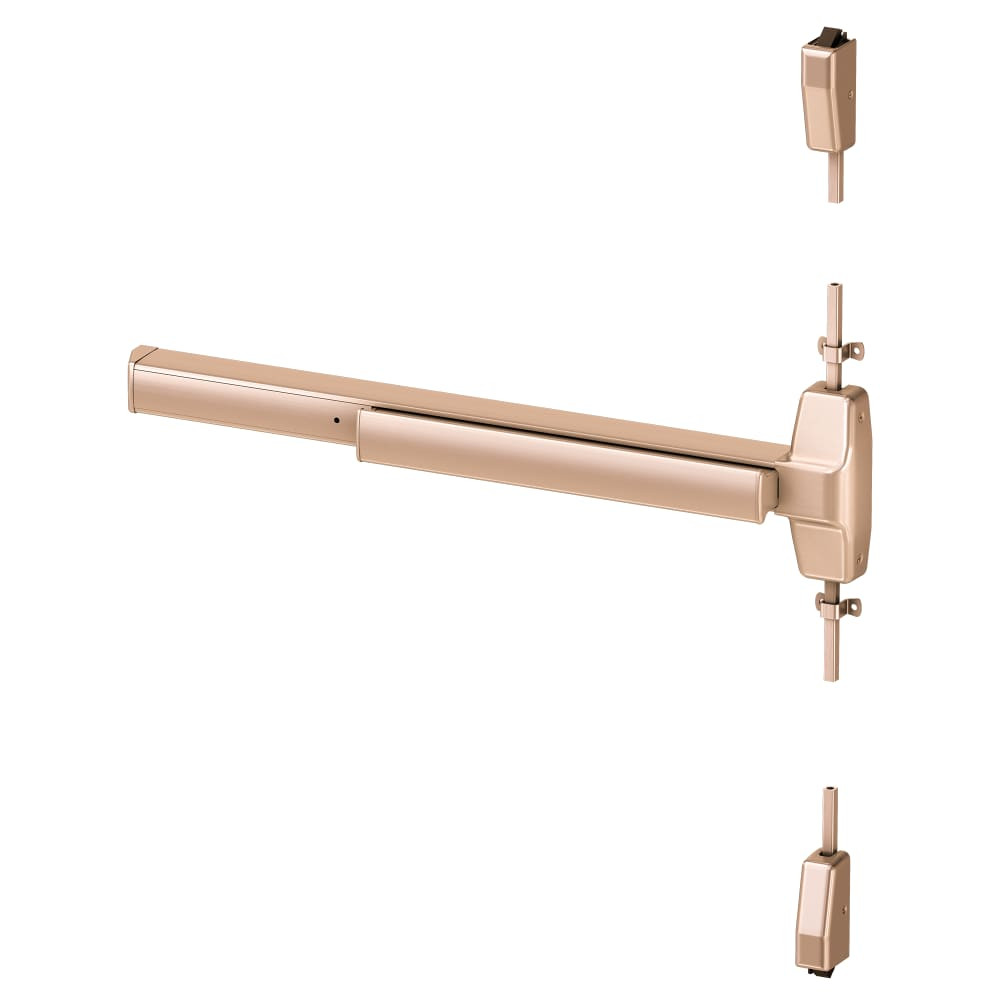

7827EO-F-US10-4 Von Duprin Fire Rated 78 Series Exit Only Surface Vertical Rod Exit Device in Satin Bronze
The Von Duprin 7827EO-F-US10-4 is a surface vertical rod exit device that latches at the header and threshold for pairs of storefront doors. Exit Only — push bar operation from inside only, no outside trim. Free egress from inside. No cylinder required for this function.
The 7827 uses surface-mounted rods for top-and-bottom latching. Standard choice for pairs of doors where both leaves need to be active. Available in 4-foot width. Rods are visible on the door face. UL listed for fire exit hardware — no mechanical dogging on fire-rated models. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: Fire-rated 7827-F models lose mechanical dogging per UL code. If the customer needs doors to stay open during business hours on a fire-rated pair, you need magnetic hold-open devices tied to the fire alarm system. Budget that into the quote.
| Specifications | |
|---|---|
| Part Number | 7827EO-F-US10-4 |
| Function | EO - Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Door Width | 4-Foot (48") |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Not Included — order separately |
| Warranty | 5-Year Mechanical |
- Surface vertical rod latching — secures at header and threshold
- Standard choice for pairs of active doors
- UL listed for fire exit hardware — no mechanical dogging per code
- Satin Bronze (US10/612) finish
Works With: For single doors, see the 78 Series Rim. For concealed rods, see the 7847 CVR. Order coordinator separately for pairs of fire-rated doors.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
