Product Description
7827NL-313-4 Von Duprin 78 Series with 990NL Night Latch Surface Vertical Rod Exit Device in Duranodic Dark Bronze
The Von Duprin 7827NL-313-4 is a surface vertical rod exit device that latches at the header and threshold for pairs of storefront doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
The 7827 uses surface-mounted rods for top-and-bottom latching. Standard choice for pairs of doors where both leaves need to be active. Available in 4-foot width. Rods are visible on the door face. UL listed for panic exit hardware with hex key dogging standard. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: Fire-rated 7827-F models lose mechanical dogging per UL code. If the customer needs doors to stay open during business hours on a fire-rated pair, you need magnetic hold-open devices tied to the fire alarm system. Budget that into the quote.
| Specifications | |
|---|---|
| Part Number | 7827NL-313-4 |
| Function | NL - Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Door Width | 4-Foot (48") |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Included |
| Warranty | 5-Year Mechanical |
- Surface vertical rod latching — secures at header and threshold
- Standard choice for pairs of active doors
- Hex key dogging standard — holds latch retracted during business hours
- Dark Bronze (313/313) finish
Works With: For single doors, see the 78 Series Rim. For concealed rods, see the 7847 CVR. Order coordinator separately for pairs of fire-rated doors.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

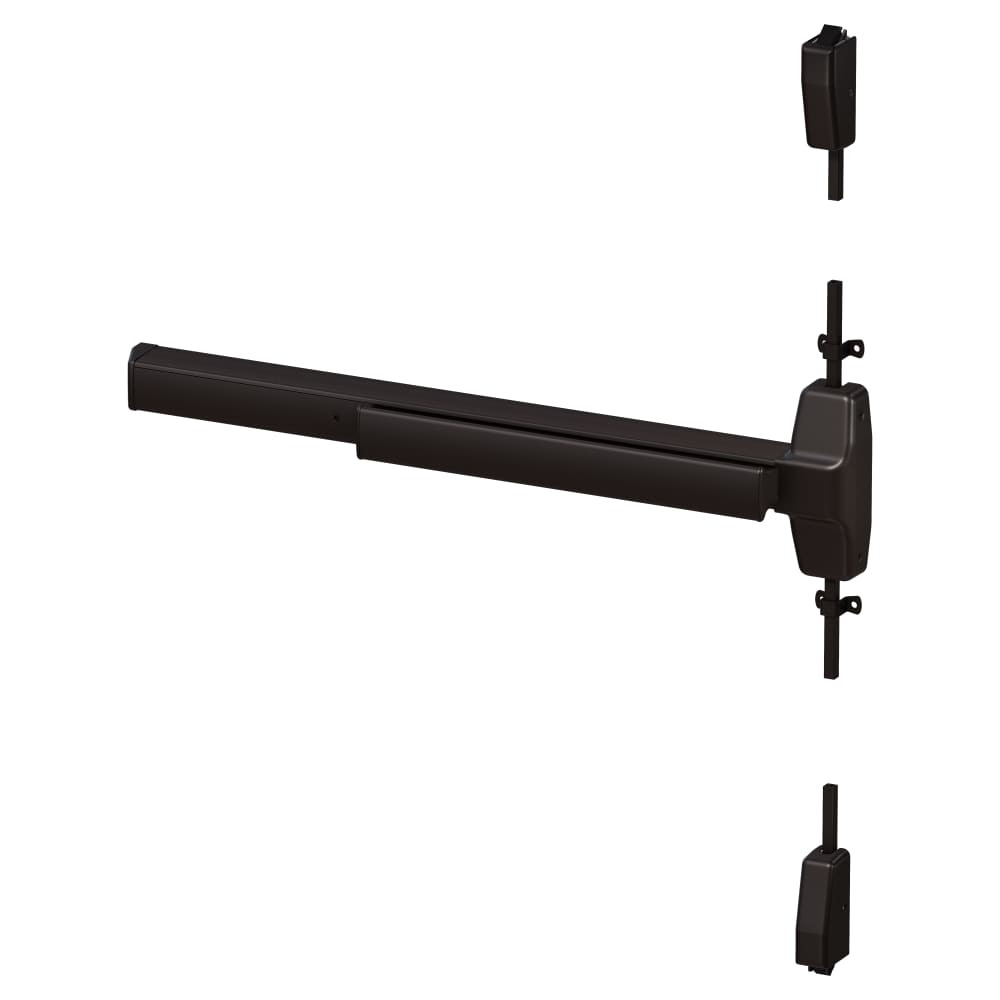

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
