Product Description
The Sargent 8204 is a Storeroom function mortise lock from the 8200 Series - Sargent's heavy-duty commercial mortise platform. Outside lever always locked, key required for every entry. Inside lever always free.

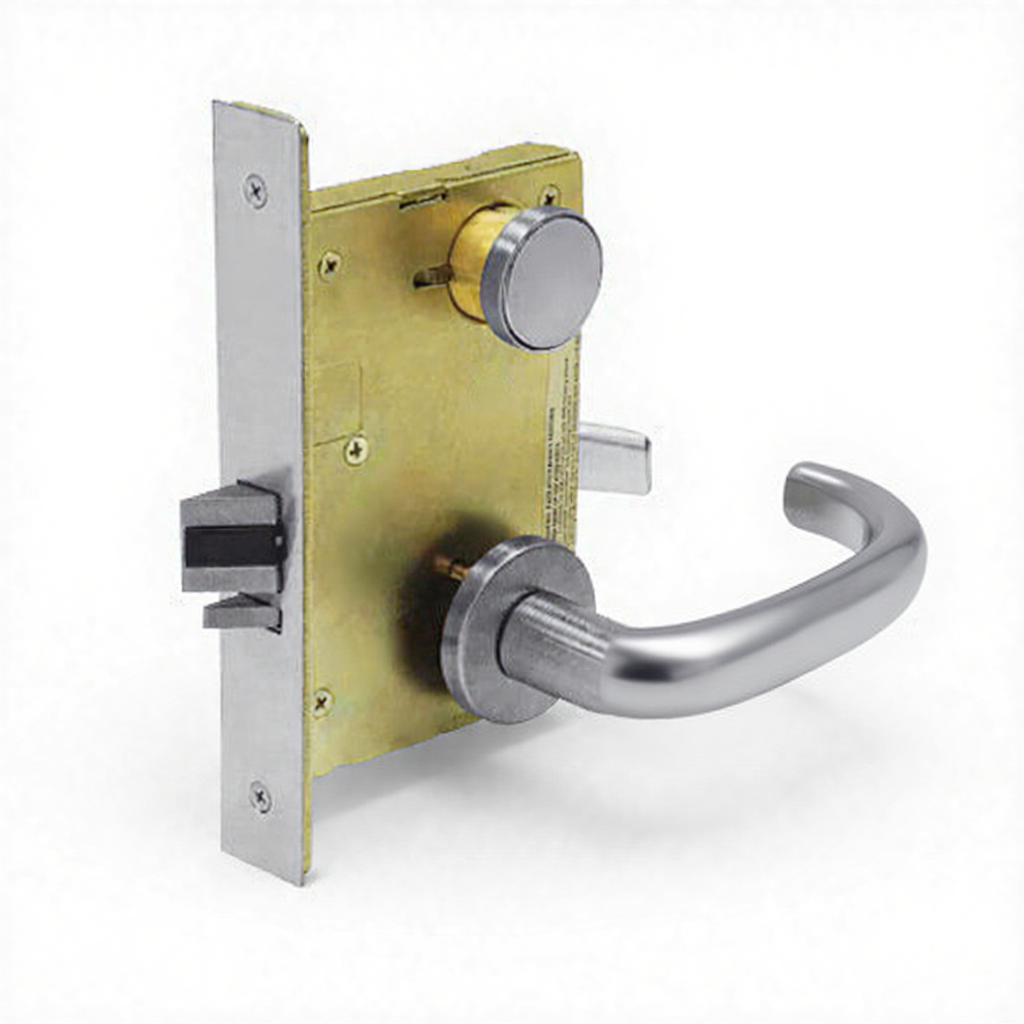

Ships without a cylinder installed. The photo above shows the lock with a mortise cylinder so you get the full picture of how it looks on the door. Browse compatible cylinders in Related Products below.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8204 LNB BSP |
| Series | 8200 |
| Function | Storeroom (8204) |
| Trim | LN Rose, B Lever |
| Finish | Black Suede (BSP) |
| Cylinder | Less Cylinder — order a compatible cylinder from Related Products |
| Mount Type | Mortise |
| Fire Rating | Fire Rated - UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10 years (mechanical) |
- ANSI/BHMA Grade 1 - highest commercial security rating
- Fire rated mortise lock - UL Listed for fire-rated openings
- LN Rose, B Lever - non-handed, works on left or right swing doors
- Less cylinder — compatible Sargent mortise cylinders and aftermarket options available in Related Products below
- Black Suede (BSP) - available to match your existing hardware
Works With: Sargent 8200 Series mortise locks. This lock accepts any standard mortise cylinder — see Related Products below for Sargent OEM and aftermarket options to match your keyway. If you need electrified access control on this opening, look at the 8270 (Fail Safe) or 8271 (Fail Secure) versions.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
