Product Description
The Sargent 8225 is a Dormitory/Exit function mortise lock from the 8200 Series — Sargent's heavy-duty commercial mortise platform.

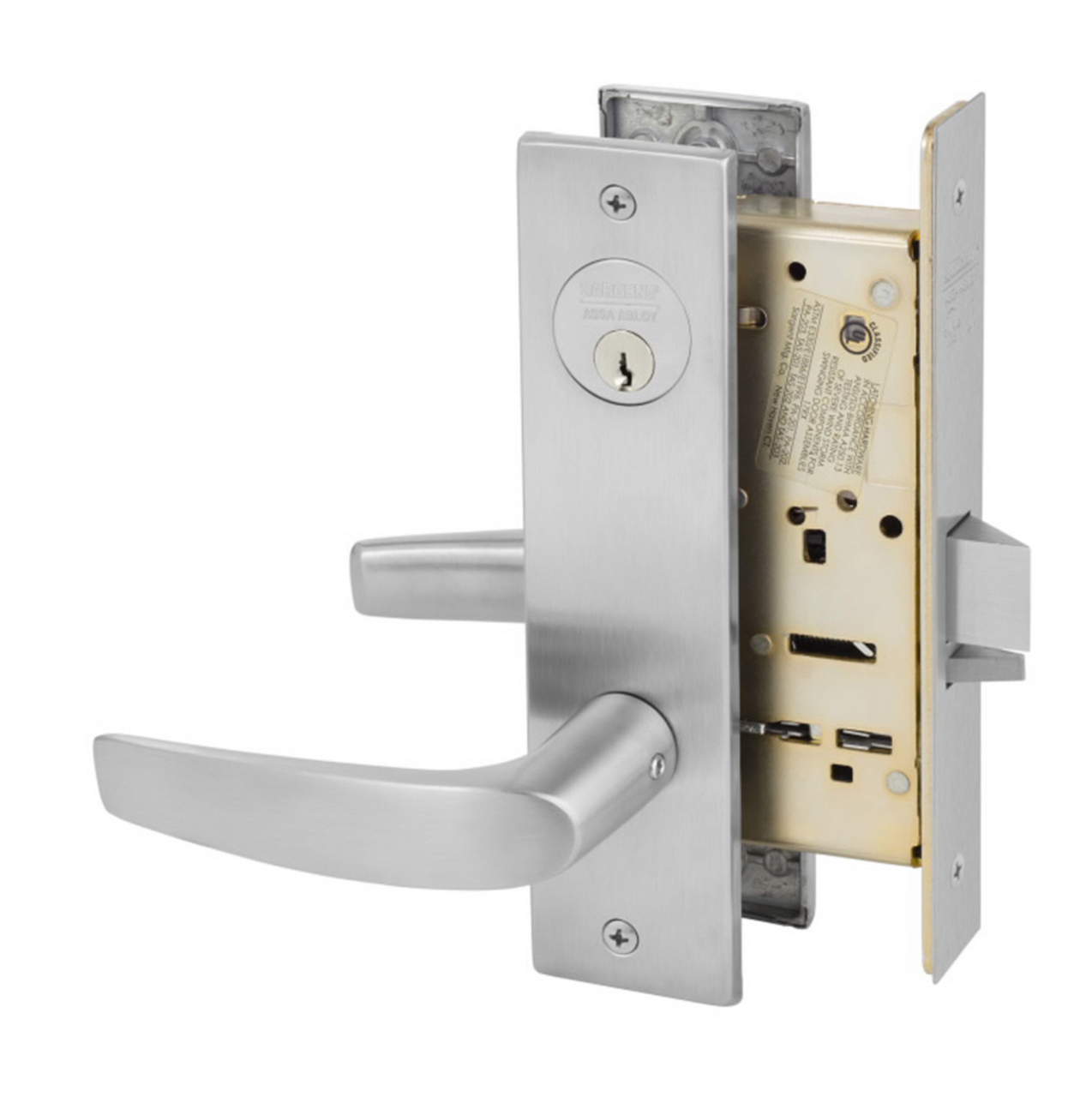

This lock ships less cylinder. The product image shows it assembled with a cylinder so you can see the full look. Check Related Products below for compatible options.
Pro-Tip from Our Locksmiths: The 8225 Dormitory/Exit is one of the most commonly specified 8200 functions in commercial construction. Make sure you match the keyway to your existing system.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8225 LE1L 10 |
| Series | 8200 |
| Function | Dormitory/Exit (8225) |
| Trim | LE1 Escutcheon, L Lever |
| Finish | Satin Bronze (US10/612) |
| Mount Type | Mortise |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Cylinder | Less Cylinder — see Related Products |
| Warranty | 10 years (mechanical) |
- ANSI/BHMA Grade 1 — highest commercial security rating
- Fire rated mortise lock — UL Listed for fire-rated openings
- LE1 Escutcheon, L Lever — non-handed, works on left or right swing doors
- Less cylinder — compatible mortise cylinders available in Related Products below
- Satin Bronze (US10/612)
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. For warranty service, contact ASSA ABLOY Customer Care at 1-800-727-5477.Product Videos
Custom Field
Product Type Mortise Lock
Function Dormitory/Exit
Series 8200
Finish Satin Bronze
Trim LE1 Escutcheon, L Lever
Mount Type Mortise
Fire Rated Fire Rated
Cylinder Less Cylinder
