Product Description
The Sargent 8225-LE1L-4 is a 8200 Series Dormitory mortise lock in . Outside lever locked by inside thumbturn, unlocked by key from outside. Inside always free.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8225-LE1L-4 |
| Series | Sargent 8200 |
| Function | Dormitory |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Dormitory function — Outside lever locked by inside thumbturn, unlocked by key from outside. Inside a
- finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

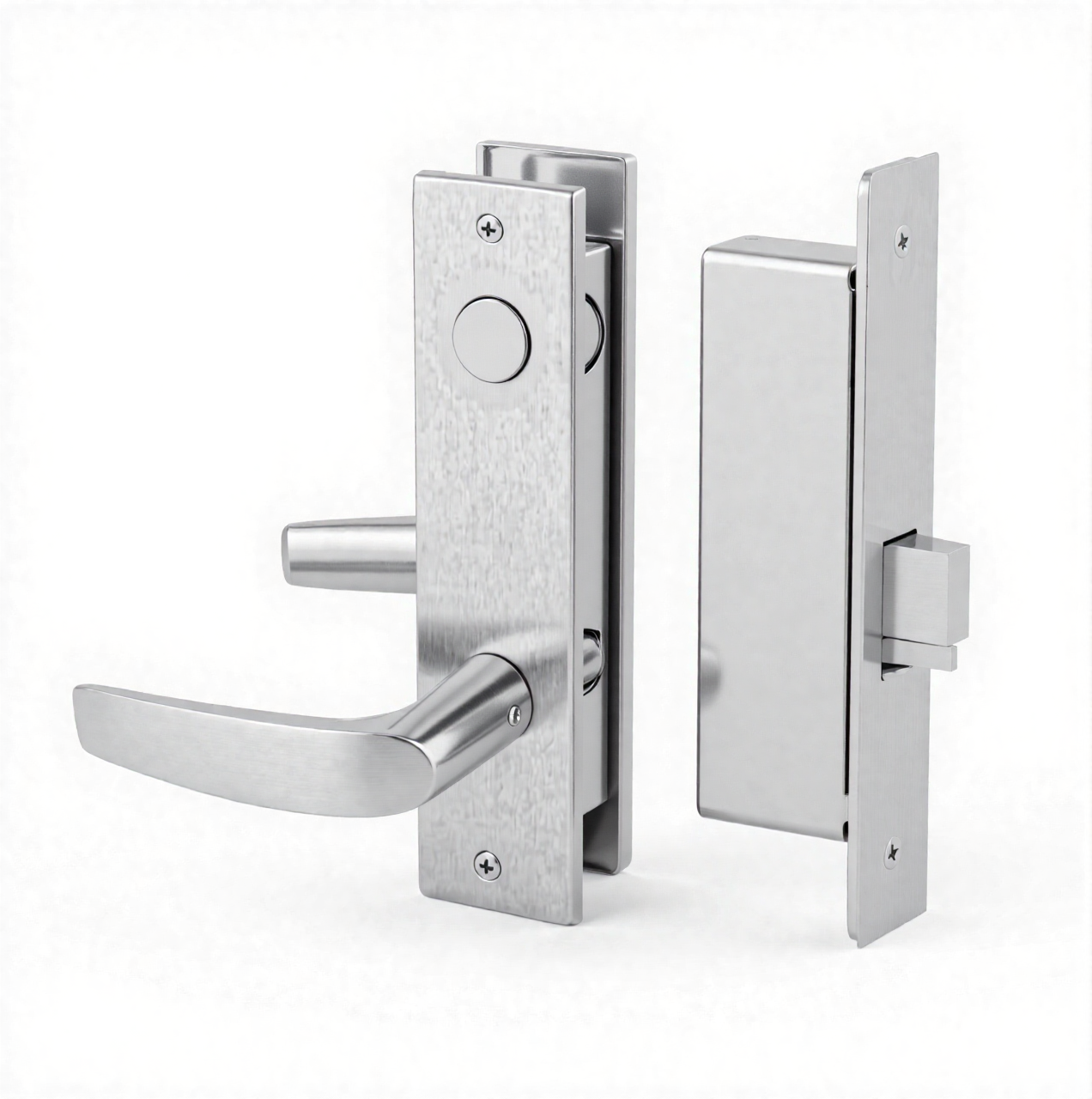

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Dormitory
Series 8200
Finish Satin Brass
Trim LE1 Escutcheon, L Lever
Cylinder Standard Cylinder
Mount Type Mortise
Fire Rated Fire Rated
