Product Description
The Sargent 8225-LNP-3 is a 8200 Series Dormitory mortise lock in Bright Brass (US3/605). Outside lever locked by inside thumbturn, unlocked by key from outside. Inside always free.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Pro-Tip from Our Locksmiths: If you're bidding against Schlage L-Series on a commercial job, the 8200 wins on durability. The Sargent chassis is thicker gauge and the hub mechanism has less play after heavy use.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8225-LNP-3 |
| Series | Sargent 8200 |
| Function | Dormitory |
| Trim / Lever | LN Rose, P Lever |
| Finish | Bright Brass (US3/605) |
| Mount Type | Mortise |
| Cylinder | Standard Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Dormitory function — Outside lever locked by inside thumbturn, unlocked by key from outside. Inside a
- Bright Brass (US3/605) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

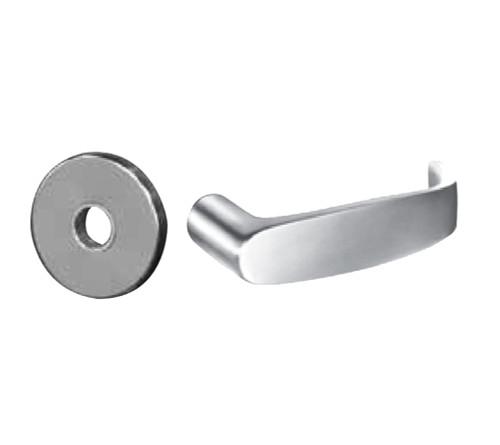

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
