Product Description
The Sargent 8225 is a Dormitory/Exit function mortise lock from the 8200 Series — Sargent's heavy-duty commercial mortise platform.

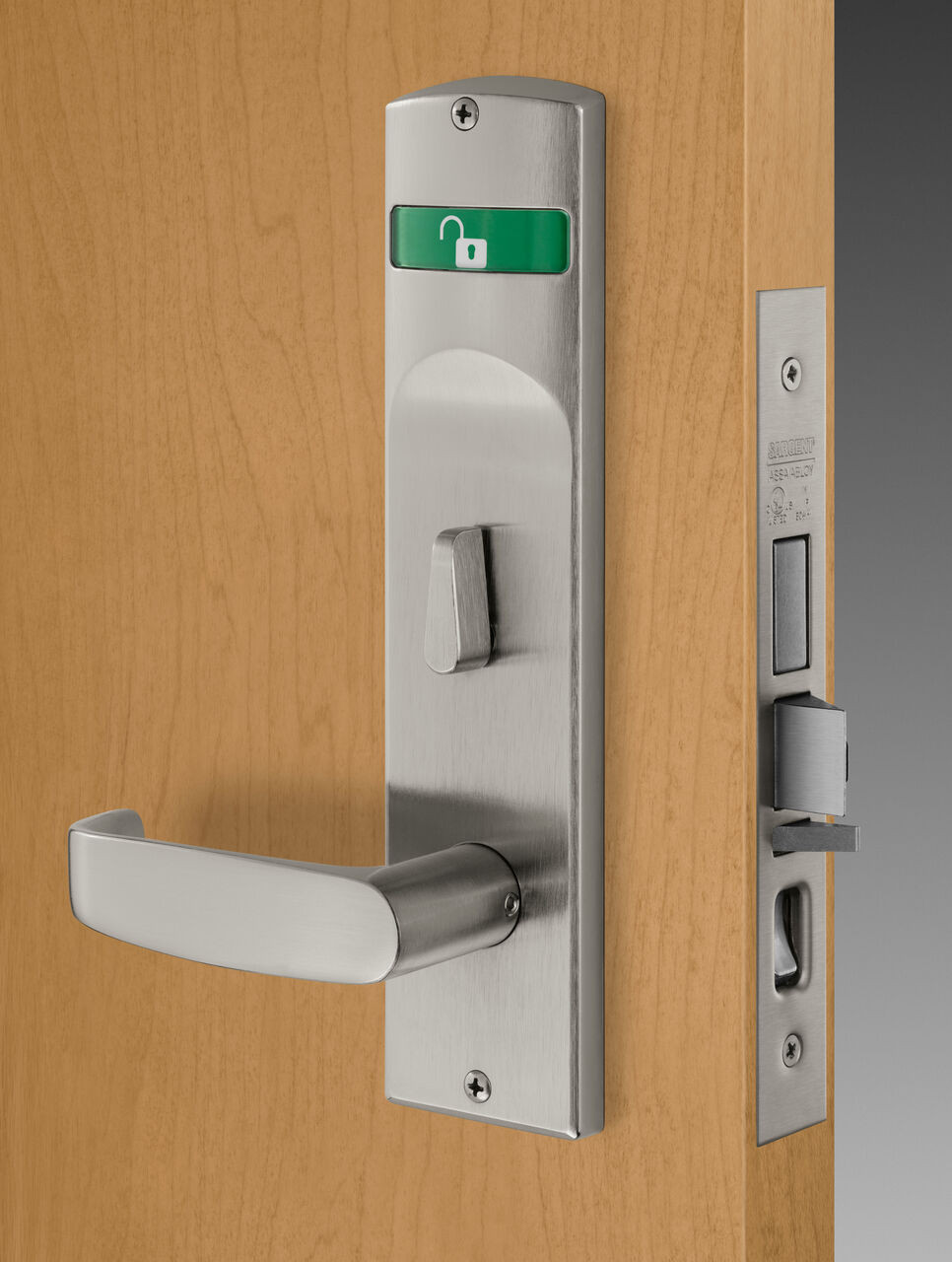

Ships without a cylinder. The photo shows the lock with a mortise cylinder so you get the full picture. Browse compatible cylinders in Related Products below.
Pro-Tip from Our Locksmiths: The 8225 Dormitory/Exit is one of the most commonly specified 8200 functions in commercial construction. Make sure you match the keyway to your existing system.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8225 LW1L 10B |
| Series | 8200 |
| Function | Dormitory/Exit (8225) |
| Trim | LW1 Escutcheon, L Lever |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Mount Type | Mortise |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Cylinder | Less Cylinder — see Related Products |
| Warranty | 10 years (mechanical) |
- ANSI/BHMA Grade 1 — highest commercial security rating
- Fire rated mortise lock — UL Listed for fire-rated openings
- LW1 Escutcheon, L Lever — non-handed, works on left or right swing doors
- Ships less cylinder — see Related Products for OEM Sargent cylinders and aftermarket options
- Oil Rubbed Bronze (US10B/613)
Ships Same Day — Order before 2PM EST and your Sargent product ships the same business day. Authorized Sargent distributor with full manufacturer warranty.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. For warranty service, contact ASSA ABLOY Customer Care at 1-800-727-5477.Product Videos
Custom Field
Product Type Mortise Lock
Function Dormitory/Exit
Series 8200
Finish Oil Rubbed Bronze
Trim LW1 Escutcheon, L Lever
Mount Type Mortise
Fire Rated Fire Rated
Cylinder Less Cylinder
