Product Description

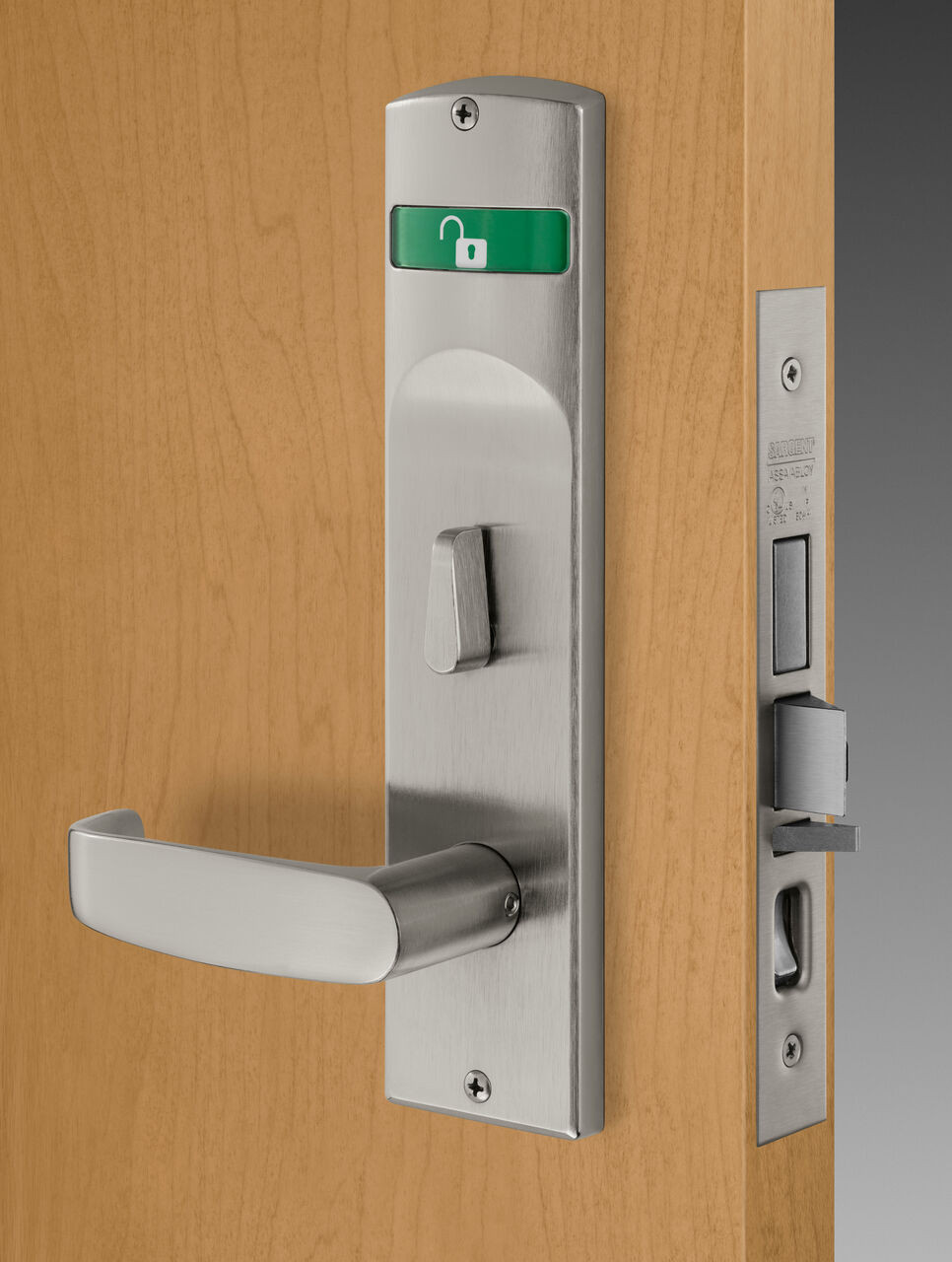

The Sargent 8243 is a Apartment Corridor function mortise lock from the 8200 Series — Sargent's heavy-duty commercial mortise platform.
Less cylinder — the image includes a cylinder for reference. You will need a mortise cylinder to complete the installation. See Related Products below.
Pro-Tip from Our Locksmiths: The 8243 Apartment Corridor is one of the most commonly specified 8200 functions in commercial construction. Make sure you match the keyway to your existing system.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8243 LSL 26D |
| Series | 8200 |
| Function | Apartment Corridor (8243) |
| Trim | LS Escutcheon, L Lever |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Cylinder | Less Cylinder — see Related Products |
| Warranty | 10 years (mechanical) |
- ANSI/BHMA Grade 1 — highest commercial security rating
- Fire rated mortise lock — UL Listed for fire-rated openings
- LS Escutcheon, L Lever — non-handed, works on left or right swing doors
- Ships less cylinder — see Related Products for OEM Sargent cylinders and aftermarket options
- Satin Chrome (US26D/626)
Ships Same Day — Order before 2PM EST and your Sargent product ships the same business day. Authorized Sargent distributor with full manufacturer warranty.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. For warranty service, contact ASSA ABLOY Customer Care at 1-800-727-5477.Product Videos
Custom Field
Product Type Mortise Lock
Function Apartment Corridor
Series 8200
Finish Satin Chrome
Trim LS Escutcheon, L Lever
Mount Type Mortise
Fire Rated Fire Rated
Cylinder Less Cylinder
