Product Description
The Sargent 8259-LNA-32D-LH is a 8200 Series mortise lock in Satin Stainless (US32D/630). Built to ANSI/BHMA Grade 1 standards with a heavy-duty cast stainless steel chassis designed for high-traffic commercial applications.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 8259-LNA-32D-LH | |
| 8259 | Series 8200, Function code function |
| LNA | Trim/lever design: LNA Lever Trim |
| 32D | Finish: Satin Stainless |
| LH | Left Hand |
Pro-Tip from Our Locksmiths: The 8200 Series is Sargent's flagship mortise lock — you'll find it in hospitals, universities, and government buildings across the country. The cast stainless steel chassis handles millions of cycles without the wobble you get from stamped steel competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8259-LNA-32D-LH |
| Series | Sargent 8200 |
| Trim / Lever | LNA Lever Trim |
| Finish | Satin Stainless (US32D/630) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Satin Stainless (US32D/630) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

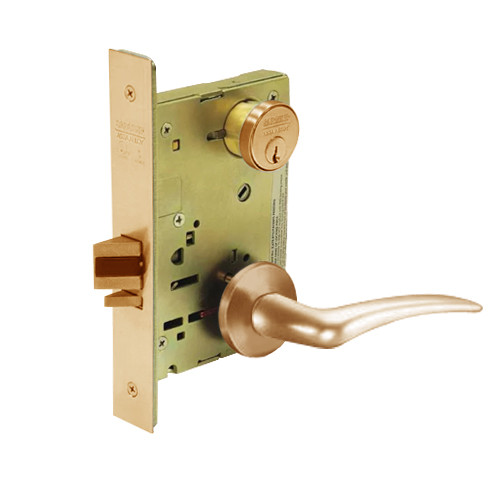

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
