Product Description
The Sargent 8267 is a Institutional Privacy function mortise lock from the 8200 Series — Sargent's heavy-duty commercial mortise platform.

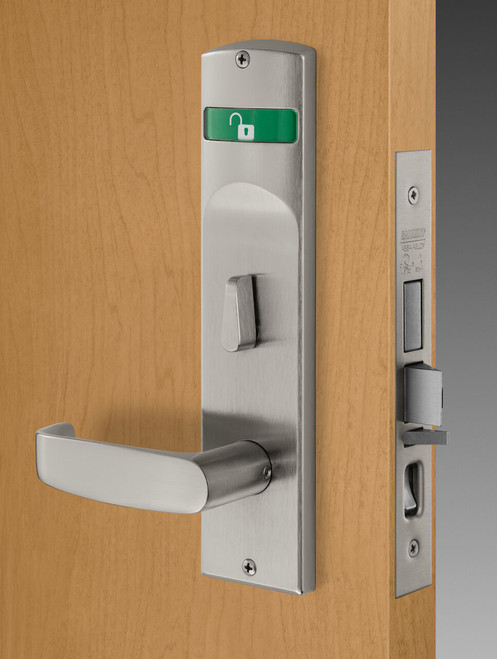

Less cylinder — the image includes a cylinder for reference. You will need a mortise cylinder to complete the installation. See Related Products below.
Pro-Tip from Our Locksmiths: The 8267 Institutional Privacy is one of the most commonly specified 8200 functions in commercial construction. Make sure you match the keyway to your existing system.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8267 LW1L 26D |
| Series | 8200 |
| Function | Institutional Privacy (8267) |
| Trim | LW1 Escutcheon, L Lever |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Mortise |
| Fire Rating | Fire Rated — UL Listed |
| Grade | ANSI/BHMA Grade 1 |
| Cylinder | Less Cylinder — see Related Products |
| Warranty | 10 years (mechanical) |
- ANSI/BHMA Grade 1 — highest commercial security rating
- Fire rated mortise lock — UL Listed for fire-rated openings
- LW1 Escutcheon, L Lever — non-handed, works on left or right swing doors
- Ships less cylinder — see Related Products for OEM Sargent cylinders and aftermarket options
- Satin Chrome (US26D/626)
Authorized Sargent Dealer — Ships brand new in factory-sealed packaging with complete manufacturer warranty. Same day shipping on most orders.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. For warranty service, contact ASSA ABLOY Customer Care at 1-800-727-5477.Product Videos
Custom Field
Product Type Mortise Lock
Function Institutional Privacy
Series 8200
Finish Satin Chrome
Trim LW1 Escutcheon, L Lever
Mount Type Mortise
Fire Rated Fire Rated
Cylinder Less Cylinder
