Product Description
The Sargent 8270-24V-LE1F-10 is a 8200 Series Fail Safe mortise lock in Satin Bronze (US10/612). Unlocks on power loss for life safety egress.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 8270-24V-LE1F-10 | |
| 8270 | Series 8200, Institution function |
| 24V | Voltage: 24V |
| LE1F | Trim code: LE1F |
| 10 | Finish: Satin Bronze |
Pro-Tip from Our Locksmiths: On high-security jobs, pair this with a Sargent Signature Series cylinder for restricted keyway control. The tolerances on Sargent cylinders are tighter than most competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8270-24V-LE1F-10 |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Finish | Satin Bronze (US10/612) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Safe function — Unlocks on power loss for life safety egress.
- Satin Bronze (US10/612) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

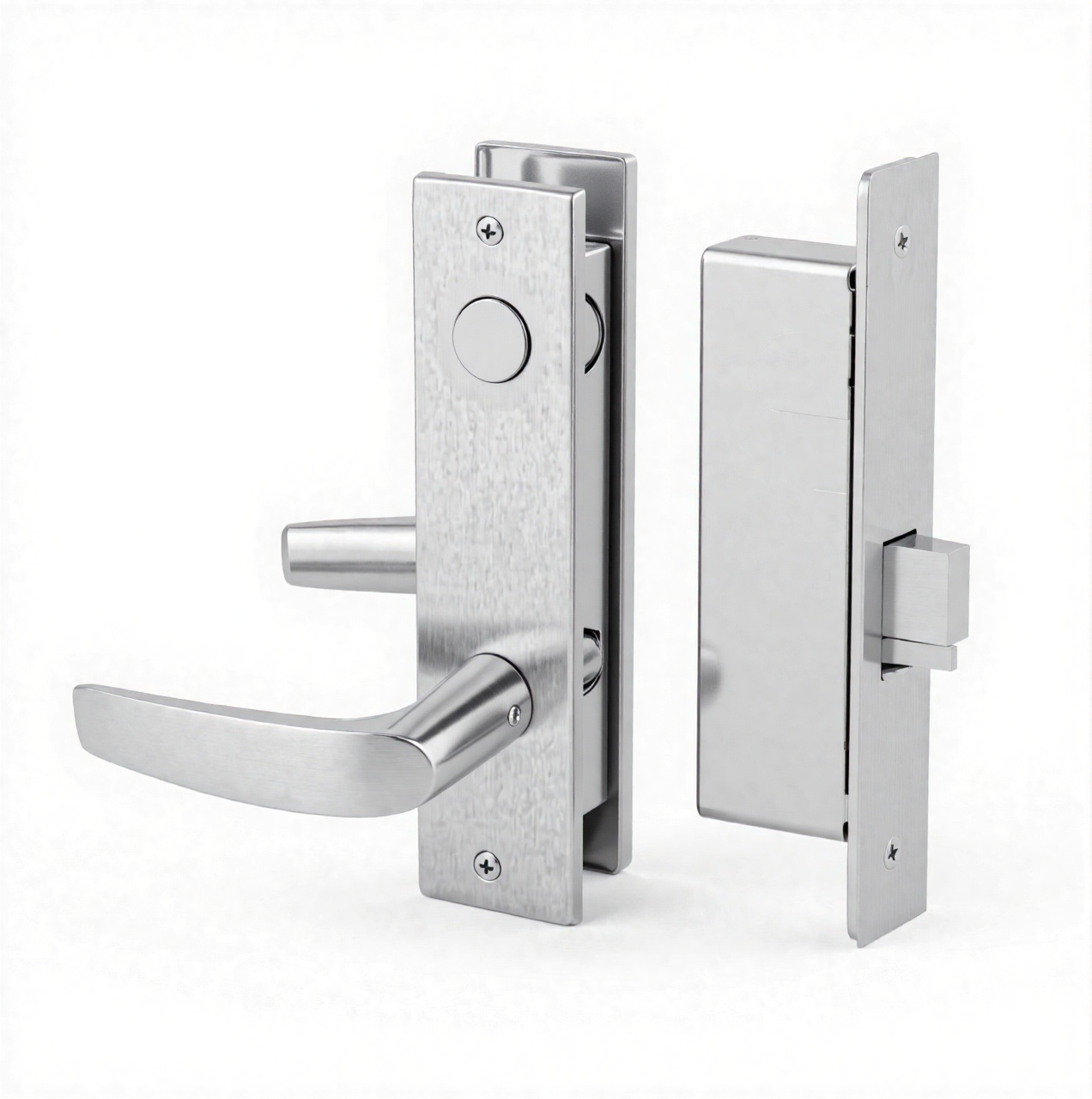

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Fail Safe
Series 8200
Finish Satin Bronze
Trim LE1 Escutcheon, F Lever
Cylinder Less Cylinder
Mount Type Mortise
Fire Rated Fire Rated
Voltage 24VDC
Mode Fail Safe
