Product Description
Every school, hospital, and government building running access control needs electrified locks — and Fail Safe is required by code on fire-rated egress paths. This is that lock.

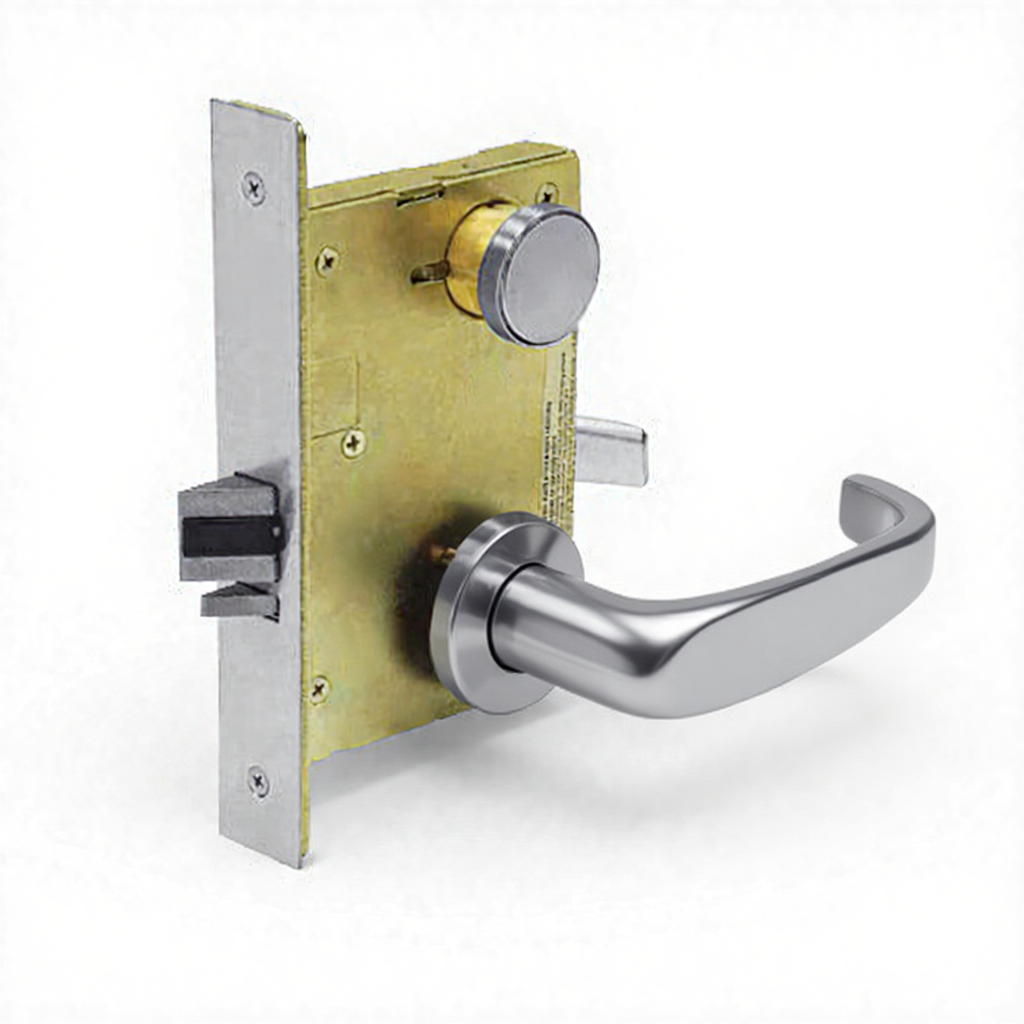

The Sargent 8270-24V-LNA-10-RH is a Fail Safe function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Fail Safe electric operation wired for 24VDC from your access control panel, card reader, or keypad system. The lock retracts the latch automatically when power is cut — code-required on fire-rated egress doors.
This one comes with LN Rose, A Lever in Satin Bronze — Satin Bronze finish.
| Handing | Right Hand |
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 3-Year Limited (electromechanical). Mechanical components: 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LN Rose, A Lever — Sargent commercial trim
- Satin Bronze finish
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
- Sargent Electrified Mortise Locks — Compare Fail Safe vs. Fail Secure
20+ Years in the Trade — Lock Depot started as a locksmith shop and grew into one of the largest online commercial hardware distributors in the country. Every Sargent product ships factory-sealed with the complete manufacturer warranty. Need help? (877) 365-5625 — we'll answer in locksmith, not sales talk.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
