Product Description

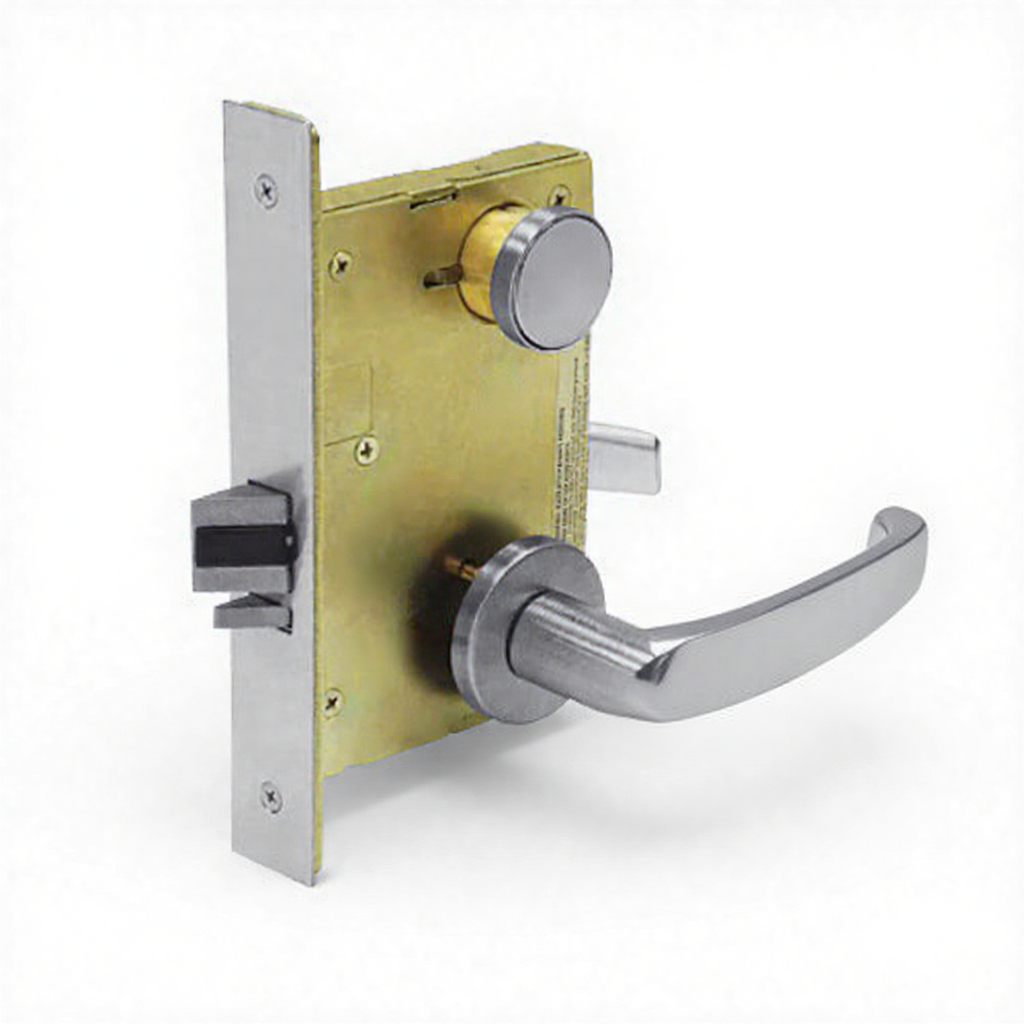

The Sargent 8270-24V-LNF-32D is a 8200 Series Fail Safe mortise lock in Satin Stainless (US32D/630). Unlocks on power loss for life safety egress.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 8270-24V-LNF-32D | |
| 8270 | Series 8200, Institution function |
| 24V | Trim/lever design: LN Rose, F Lever |
| LNF | Finish: Satin Stainless |
| 32D | Configuration modifier |
Pro-Tip from Our Locksmiths: The 8200 Series is Sargent's flagship mortise lock — you'll find it in hospitals, universities, and government buildings across the country. The cast stainless steel chassis handles millions of cycles without the wobble you get from stamped steel competitors.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8270-24V-LNF-32D |
| Series | Sargent 8200 |
| Function | Fail Safe |
| Trim / Lever | LN Rose, F Lever |
| Finish | Satin Stainless (US32D/630) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Fire Rating | Fire Rated — UL Listed |
| Voltage | 24VDC |
| Electronics | Electrified — see voltage and monitoring specs |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Safe function — Unlocks on power loss for life safety egress.
- Satin Stainless (US32D/630) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.
Free Expert Support — As an authorized Sargent distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.

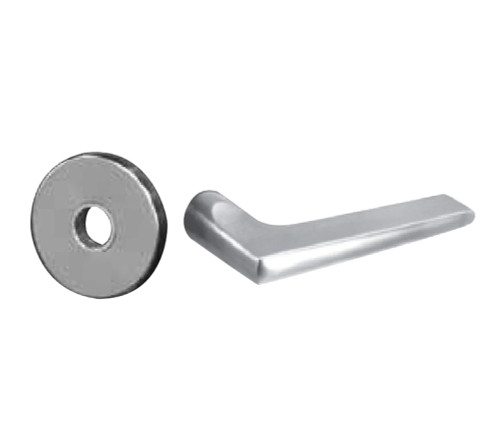

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
