Product Description
Card access, keypads, fob readers — whatever access control system you're running, this electrified mortise lock is the hardware that makes it work. Fail Safe means the door unlocks when power goes out.
The Sargent 8270-24V-LNL-10B is a Fail Safe function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Fail Safe electric operation wired for 24VDC from your access control panel, card reader, or keypad system. The lock retracts the latch automatically when power is cut — code-required on fire-rated egress doors.
This one comes with LN Rose, L Lever in Oil Rubbed Bronze — the 10B finish with a living patina that develops character over time. Popular in boutique hotels, upscale restaurants, and residential-feeling commercial spaces.
The L lever is Sargent's straight-design commercial lever — clean lines, ADA compliant, gets the job done without drawing attention to itself. The lever that disappears into the building.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 3-Year Limited (electromechanical). Mechanical components: 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LN Rose, L Lever — Sargent commercial trim
- Oil Rubbed Bronze finish
- Field reversible — works on left or right hand doors without modification
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
- Sargent Electrified Mortise Locks — Compare Fail Safe vs. Fail Secure
Why Buy From Lock Depot? — We're locksmiths, not just an online store. Every order is reviewed by someone who knows the difference between Fail Safe and Fail Secure, who can tell you which trim fits your prep, and who'll pick up the phone at (877) 365-5625 if something doesn't look right. Authorized Sargent dealer. Full manufacturer warranty. Same day shipping.

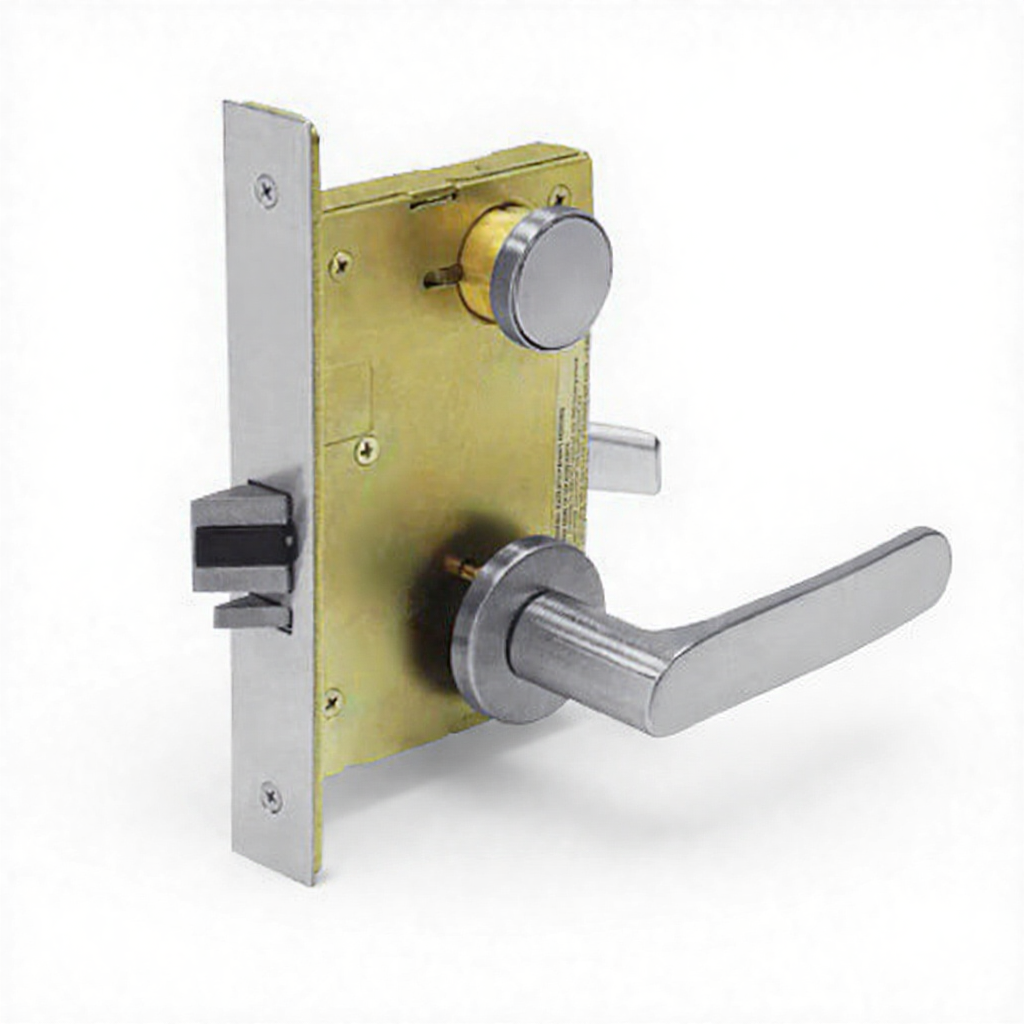

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
