Product Description
Card access, keypads, fob readers — whatever access control system you're running, this electrified mortise lock is the hardware that makes it work. Fail Safe means the door unlocks when power goes out.
The Sargent 8270-24V-LW1W-26D is a Fail Safe function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Fail Safe electric operation wired for 24VDC from your access control panel, card reader, or keypad system. The lock retracts the latch automatically when power is cut — code-required on fire-rated egress doors.
This one comes with LW1 Escutcheon, W Lever in Satin Chrome — the 26D finish you see on 90% of commercial jobs because it hides fingerprints, resists wear, and matches every other piece of hardware in the building. When in doubt, 26D is the safe bet.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 3-Year Limited (electromechanical). Mechanical components: 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LW1 Escutcheon, W Lever — Sargent commercial trim
- Satin Chrome (US26D/626) — the industry standard commercial finish, hides fingerprints and matches existing hardware
- Field reversible — works on left or right hand doors without modification
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
- Sargent Electrified Mortise Locks — Compare Fail Safe vs. Fail Secure
Free Expert Support — Not sure which function, finish, or trim you need? Call (877) 365-5625 and talk to a real locksmith — not a call center. We've spec'd Sargent hardware on thousands of commercial jobs and we'll make sure you order the right product the first time.

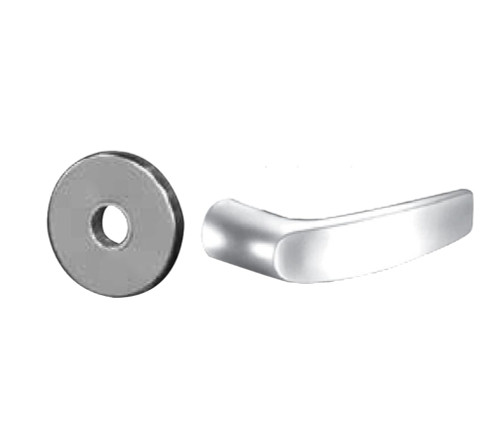

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
