Product Description
The Sargent 8271-24V-LW1L-32 is a 8200 Series Fail Secure mortise lock in Bright Stainless (US32/629). Remains locked on power loss. Key override always available.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 8271-24V-LW1L-32 | |
| 8271 | Series 8200, Classroom Security function |
| 24V | Voltage: 24V |
| LW1L | Trim code: LW1L |
| 32 | Finish: Bright Stainless |
Pro-Tip from Our Locksmiths: When retrofitting from an older Sargent mortise lock, the 8200 drops right into the same prep — same backset, same strike. Save your customer the cost of new door prep.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 8271-24V-LW1L-32 |
| Series | Sargent 8200 |
| Function | Fail Secure |
| Finish | Bright Stainless (US32/629) |
| Mount Type | Mortise |
| Cylinder | Less Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 10-Year Limited |
- Heavy-duty cast stainless steel chassis — built for millions of cycles in high-traffic environments
- Fail Secure function — Remains locked on power loss. Key override always available.
- Bright Stainless (US32/629) finish — durable commercial-grade coating
- ANSI/BHMA Grade 1 certified — highest commercial security rating
- Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Works With: Sargent 8200 Series mortise trim. Compatible with Sargent mortise cylinders in all standard keyways. For master key systems, consult your locksmith or call (877) 365-5625.

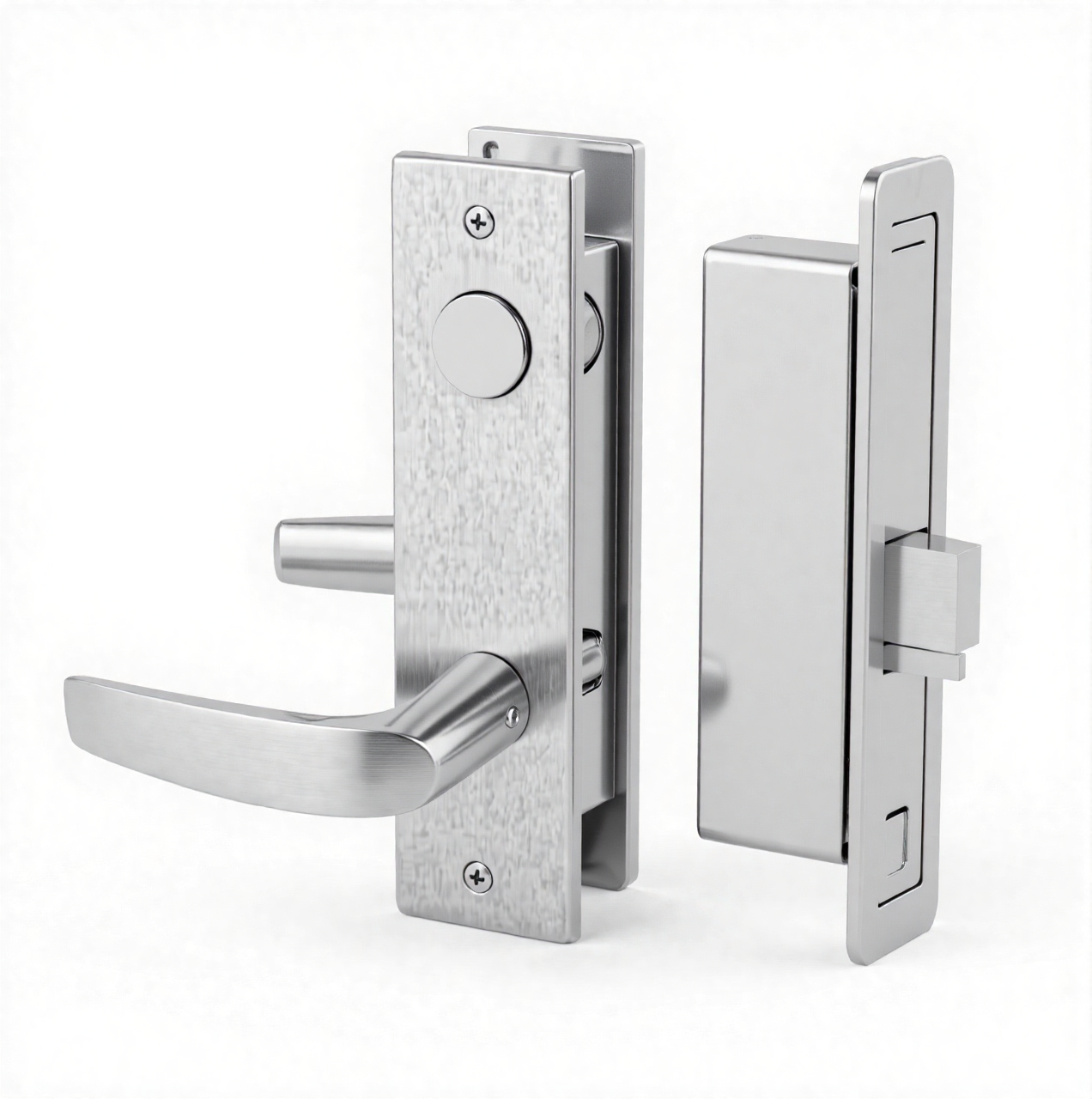

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 10-year limited warranty on mortise locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Mortise Lock
Function Fail Secure
Series 8200
Finish Bright Stainless
Trim LW1 Escutcheon, L Lever
Cylinder Less Cylinder
Mount Type Mortise
Fire Rated Fire Rated
Voltage 24VDC
Mode Fail Secure
