Product Description
Every school, hospital, and government building running access control needs electrified locks — and Fail Safe is required by code on fire-rated egress paths. This is that lock.

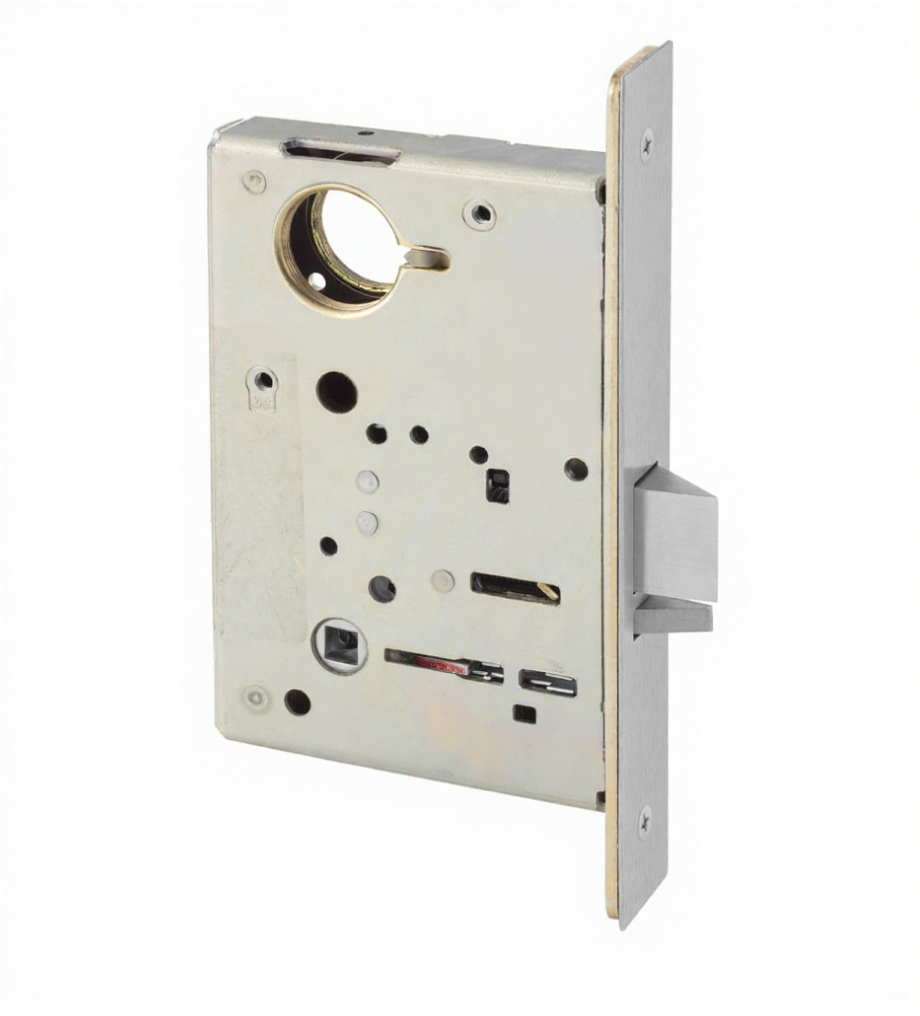

The Sargent 8272-24V-3 is a Fail Safe function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Fail Safe electric operation wired for 24VDC from your access control panel, card reader, or keypad system. The lock retracts the latch automatically when power is cut — code-required on fire-rated egress doors.
Finished in Bright Brass — the classic 03 finish. Traditional, formal, and still specified on government buildings, courthouses, and historic renovations.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 3-Year Limited (electromechanical). Mechanical components: 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- Bright Brass finish
- Field reversible — works on left or right hand doors without modification
