  • 8272-24V-LNE-3 Sargent 8200 Series Fail Safe Electrified Mortise Lock in Bright Brass - commercial door hardware from Lock Depot, authorized Sargent distributor

    • 8272-24V-LNE-3 Sargent 8200 Series Fail Safe Electrified Mortise Lock in Bright Brass

    Sargent

    MSRP: $2,175.00
    $1,212.13
    (You save $962.87 )
    SKU:
    8272-24V-LNE-3
    Condition:
    New
    Availability:
    available
    Product Type:
    Mortise Lock
    Function:
    Fail Safe
    Series:
    8200
    Finish:
    Bright Brass
    Trim:
    LN Rose, E Lever
    Cylinder:
    Less Cylinder
    Mount Type:
    Mortise
    Fire Rated:
    Fire Rated
    Voltage:
    24VDC
    Mode:
    Fail Safe
    Adding to cart… category.add_cart_announcement

    Product Description

    Upgrading to access control? The Fail Safe electrified mortise lock is the go-to for fire-rated corridor doors in schools, hospitals, and any occupancy where the code says doors MUST unlock during a power failure.

    The Sargent 8272-24V-LNE-3 is a Fail Safe function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Fail Safe electric operation wired for 24VDC from your access control panel, card reader, or keypad system. The lock retracts the latch automatically when power is cut — code-required on fire-rated egress doors.

    Fail Safe Operation — This lock unlocks automatically when power is lost. That's not a defect — it's a code requirement. On fire-rated egress doors, the lock MUST release during a power failure so occupants can get out. If you need the door to stay locked during a power outage, you want Fail Secure instead.
    Ships Less Cylinder — This lock does not include a mortise cylinder. You need to order a Sargent mortise cylinder separately to match your building's existing keyway (HA, LA, RA, RB, RC, etc.). The product image shows the lock with a cylinder installed for reference — yours will arrive without one. If you're not sure which keyway you need, pull an existing cylinder from the building and look at the key — or call us at (877) 365-5625 and we'll help you figure it out.

    This one comes with LN Rose, E Lever in Bright Brass — the classic 03 finish. Traditional, formal, and still specified on government buildings, courthouses, and historic renovations.

    Pro-Tip from Our Locksmiths: Fail Safe vs. Fail Secure — get this right. Fail Safe unlocks when power is lost. Fail Secure stays locked when power is lost. The most common mistake we see? Contractors ordering Fail Safe for a server room — that should be Fail Secure. Check with your AHJ (Authority Having Jurisdiction) if you're not sure.
    CertificationANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating)
    Backset2-3/4"
    Face Size8" x 1-1/4"
    Warranty3-Year Limited (electromechanical). Mechanical components: 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477.
    • ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
    • 3-hour fire rated — UL 10C listed for positive pressure fire test
    • LN Rose, E Lever — Sargent commercial trim
    • Bright Brass finish
    • Field reversible — works on left or right hand doors without modification

    Related Products:

    Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every lock ships brand new in factory-sealed packaging with the full manufacturer warranty. We've been selling and installing Sargent hardware for over 20 years — if you need help specifying the right lock for your opening, call us at (877) 365-5625. We speak locksmith.

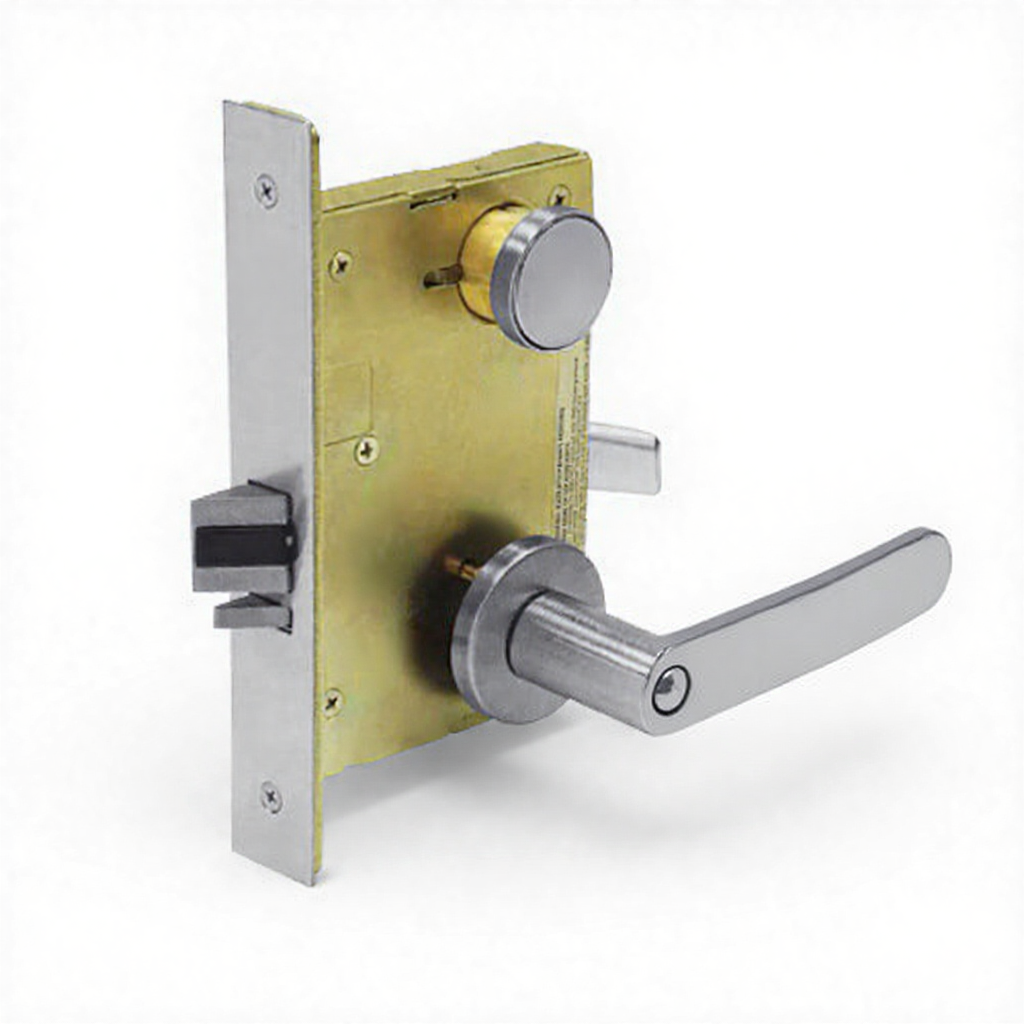

    Image shown is representative of this product line. Actual product matches your selected finish and configuration.

    Warranty Information

    Sargent provides a 3-year limited warranty on electromechanical components covering defects in materials and workmanship under normal use and service. Mechanical components retain their own warranty period. Warranty applies to the original purchaser when installed per Sargent specifications.

    Product Videos

    Custom Field

    Product Type Mortise Lock
    Function Fail Safe
    Series 8200
    Finish Bright Brass
    Trim LN Rose, E Lever
    Cylinder Less Cylinder
    Mount Type Mortise
    Fire Rated Fire Rated
    Voltage 24VDC
    Mode Fail Safe
