Product Description
8875TP-US26-RHR Von Duprin 8875 Series with 880TP-M Thumbpiece Non Fire Rated Mortise Lock Device in Bright Chrome
The Von Duprin 8875TP-US26-RHR is a narrow stile mortise lock exit device that combines the 88 Series pushpad with a heavy-duty mortise lock body for maximum latch strength. Thumbpiece Trim — outside thumbpiece depresses to retract the latch. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
The 8875 pairs the slim pushpad activation with mortise-grade latching — a step up from rim devices when the door sees heavy traffic or requires the security of a mortise lockset. Requires full mortise pocket prep. This is a handed device — verify LHR or RHR before ordering. UL listed for panic exit hardware with hex key dogging standard. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: The 8875 uses a different center case than the 88 rim device. If you're replacing an 88 rim with an 8875 mortise, the door prep is completely different — you need a full mortise pocket. This is NOT a drop-in swap. Verify the door can accept a mortise prep before ordering.
| Specifications | |
|---|---|
| Part Number | 8875TP-US26-RHR |
| Function | TP - Thumbpiece |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (mortise body recessed into door edge) |
| Handing | Right Hand Reverse (RHR) |
| Minimum Stile Width | 2" (51mm) |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Included |
| Warranty | 5-Year Mechanical |
- Narrow stile pushpad design — fits door stiles as narrow as 2 inches
- Mortise lock body provides superior latch strength vs. rim devices
- Hex key dogging standard — holds latch retracted during business hours
- Handed device — factory-set for LHR or RHR
- Bright Chrome (US26/625) finish
Works With: For rim-mount option, see the 88 Series Rim. For pairs of doors, see the 8827 SVR or 8847 CVR.
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

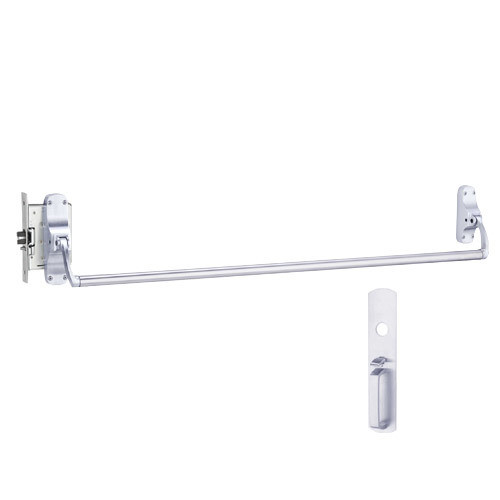

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
