Product Description
9475EO-F-US26 Von Duprin 9475 Series Exit Only Fire Rated Mortise Lock Device in Bright Chrome
| Part Number Breakdown: 9475EO-F-US26 | |
|---|---|
| 9475 | 9475 Series Exit Device |
| F | Fire Rated (UL Listed up to 3-Hour) |
| US26 | Bright Chrome (BHMA 625) |
The 9475EO-F-US26 is a Von Duprin 9475 Series Mortise Lock exit device in Bright Chrome. Exit Only — push bar releases latch from inside, no outside trim. Dogging holds latch retracted during business hours.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The 9475 Series mortise lock exit device gives you a deadbolt AND latch in one unit — the mortise case sits inside the door edge. More security than rim-mount, more holding force than a standard cylindrical lock. Standard spec for high-security commercial doors.
| Specifications | |
|---|---|
| Part Number | 9475EO-F-US26 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9475 Series |
| Function | Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Mortise Lock (deadbolt and latch in a mortise case inside the door edge) |
| Finish | Bright Chrome (US26/625) |
| Cylinder | No Cylinder |
| Fire Rating | Fire Rated — 3-Hour UL Listed |
- Von Duprin 9475 Series Mortise Lock exit device — Grade 1 architectural-grade panic hardware
- Mortise Lock (deadbolt and latch in a mortise case inside the door edge)
- Bright Chrome finish
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

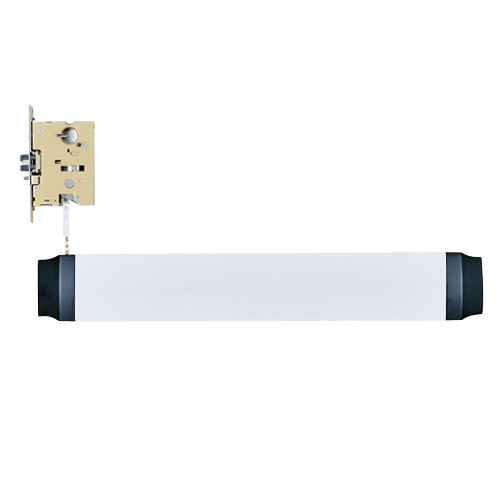

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
