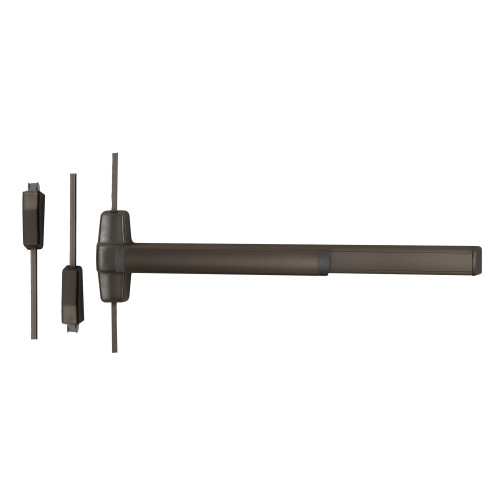

9827L-02-F 4 643E LHR Von Duprin 98 Series Classroom Fire Rated Surface Vertical Rod Exit Device in Aged Bronze
The 9827L-02-F 4 643E LHR is a Von Duprin 9827 Series Surface Vertical Rod exit device with L-02 Lever trim in Aged Bronze, sized for 4' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: The 9827 surface vertical rod device is the go-to for double-door applications where you need top and bottom latching. On pairs, you'll typically have a 9827 on the active leaf and a mullion or coordinator on the inactive side. Always spec the coordinator if both doors are operable.
| Specifications | |
|---|---|
| Part Number | 9827L-02-F 4 643E LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9827 |
| Function | Classroom |
| Lever Design | L-02 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Aged Bronze |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9827 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-02 Lever trim — pull operation from outside
- Aged Bronze finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Free Expert Support — As an authorized Von Duprin distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
