Product Description

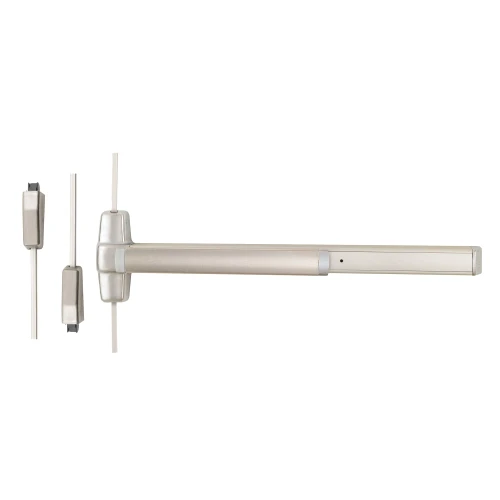

9827L-03-F 3 32D LHR Von Duprin 98 Series Classroom Fire Rated Surface Vertical Rod Exit Device in Satin Stainless Steel
The 9827L-03-F 3 32D LHR is a Von Duprin 9827 Series Surface Vertical Rod exit device with L-03 Lever trim in Satin Stainless Steel (US32D/630), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: Surface vertical rod devices (9827) have rods visible on the door surface running to top and bottom bolts. When measuring for replacement, check rod length — 3' and 4' doors need different rod kits. Also verify header and threshold strike condition before quoting.
| Specifications | |
|---|---|
| Part Number | 9827L-03-F 3 32D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9827 |
| Function | Classroom |
| Lever Design | L-03 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Satin Stainless Steel (US32D/630) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9827 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- L-03 Lever trim — pull operation from outside
- Satin Stainless Steel finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
