Product Description
9827TP-F-US26-2 Von Duprin 9827 Series with 990TP Thumbpiece Fire Rated Surface Vertical Rod Exit Device in Bright Chrome
The 9827TP-F-US26-2 is a Von Duprin 9827 Series Surface Vertical Rod exit device in Bright Chrome (US26/625), sized for 3' doors. Thumbpiece Trim — thumbpiece-operated outside trim for keyed entry. Night latch function with thumbpiece activation. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: The 9827 surface vertical rod device is the go-to for double-door applications where you need top and bottom latching. On pairs, you'll typically have a 9827 on the active leaf and a mullion or coordinator on the inactive side. Always spec the coordinator if both doors are operable.
| Specifications | |
|---|---|
| Part Number | 9827TP-F-US26-2 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9827 |
| Function | Thumbpiece |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Finish | Bright Chrome (US26/625) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9827 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts)
- Bright Chrome finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

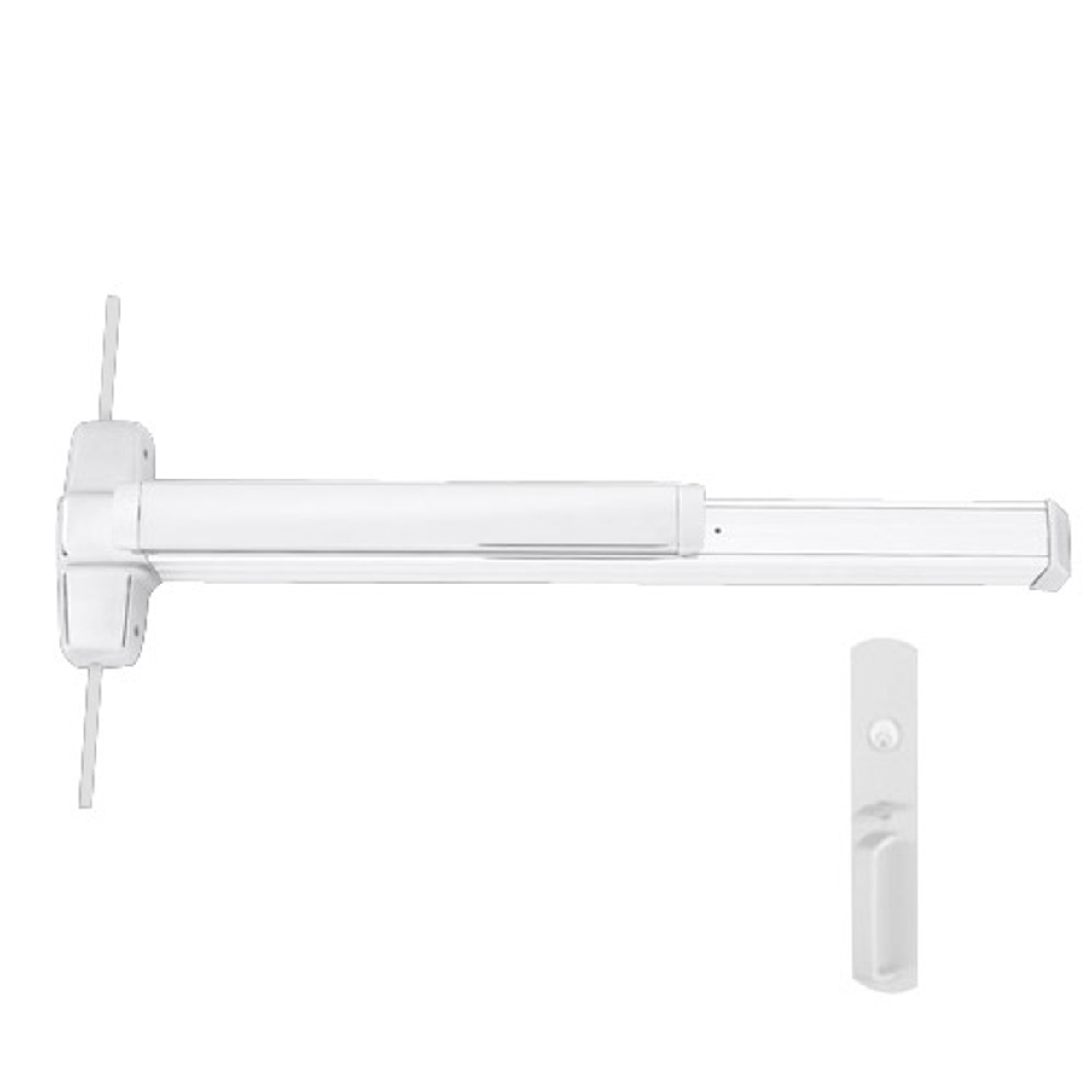

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
