Product Description

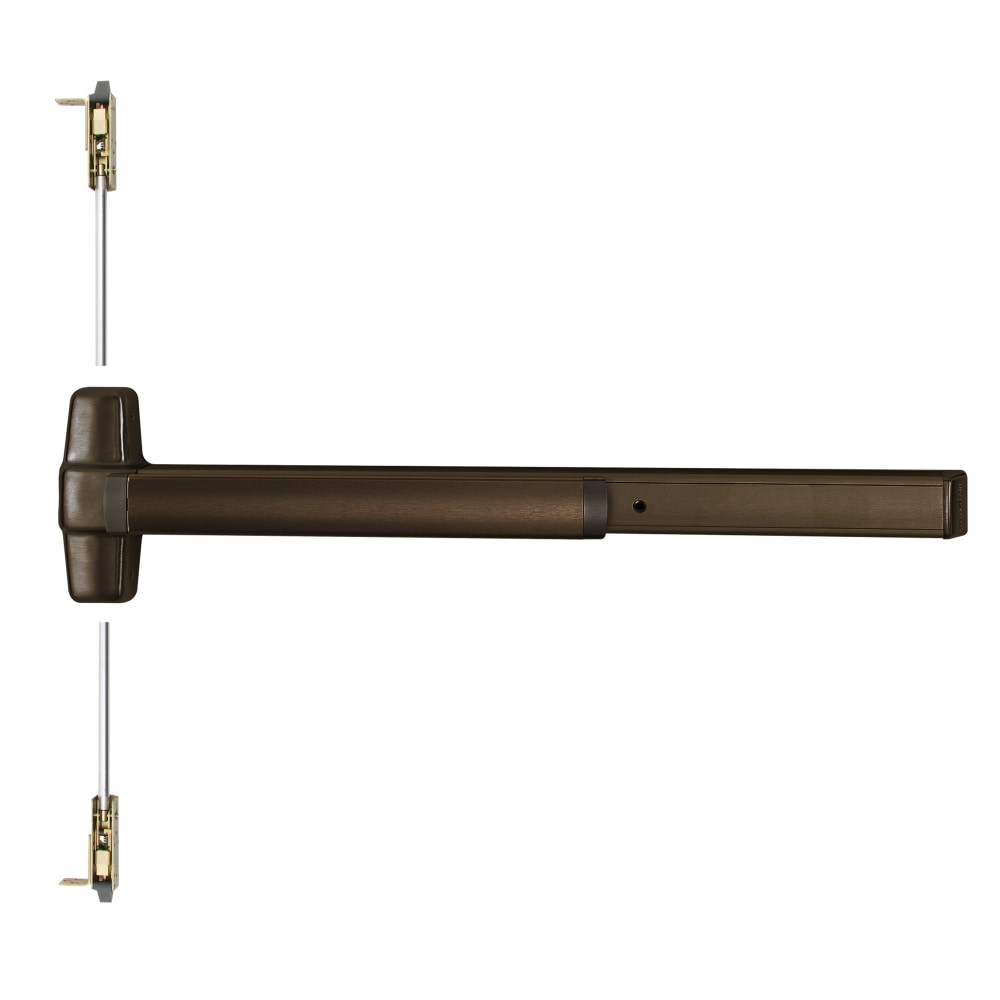

9847L-DT-07 3 313 LHR Von Duprin 98 Series Dummy Trim Concealed Vertical Rod Exit Device in Duranodic Dark Bronze
The 9847L-DT-07 3 313 LHR is a Von Duprin 9847 Series Concealed Vertical Rod exit device with L-07 Lever trim in Duranodic Dark Bronze (313/313), sized for 3' doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Concealed vertical rod devices (9847/9848) hide the rods inside the door — cleaner look than surface rods. Trade-off: you need a prepped door with internal routing. On retrofit jobs, verify the door has CVR prep before quoting. If it doesn't, you're looking at field prep or a door swap.
| Specifications | |
|---|---|
| Part Number | 9847L-DT-07 3 313 LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847 |
| Function | Dummy Trim |
| Lever Design | L-07 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Duranodic Dark Bronze (313/313) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | No cylinder required for this function |
| Fire Rating | Non Fire Rated |
- Von Duprin 9847 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-07 Lever trim — pull operation from outside
- Duranodic Dark Bronze finish
- Hex key dogging standard — hold latch retracted during business hours
