Product Description
9847L-NL-17 3 32D LHR Von Duprin 98 Series Night Latch Concealed Vertical Rod Exit Device in Satin Stainless Steel
The 9847L-NL-17 3 32D LHR is a Von Duprin 9847 Series Concealed Vertical Rod exit device with L-17 Lever trim in Satin Stainless Steel (US32D/630), sized for 3' doors. Night Latch — outside lever locks and unlocks by key, inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Factory set LHR, field reversible.
Pro-Tip from Our Locksmiths: Concealed vertical rod devices (9847/9848) hide the rods inside the door — cleaner look than surface rods. Trade-off: you need a prepped door with internal routing. On retrofit jobs, verify the door has CVR prep before quoting. If it doesn't, you're looking at field prep or a door swap.
| Specifications | |
|---|---|
| Part Number | 9847L-NL-17 3 32D LHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847 |
| Function | Night Latch |
| Lever Design | L-17 Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Stainless Steel (US32D/630) |
| Handing | Left Hand Reverse (LHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9847 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- L-17 Lever trim — pull operation from outside
- Satin Stainless Steel finish
- Hex key dogging standard — hold latch retracted during business hours

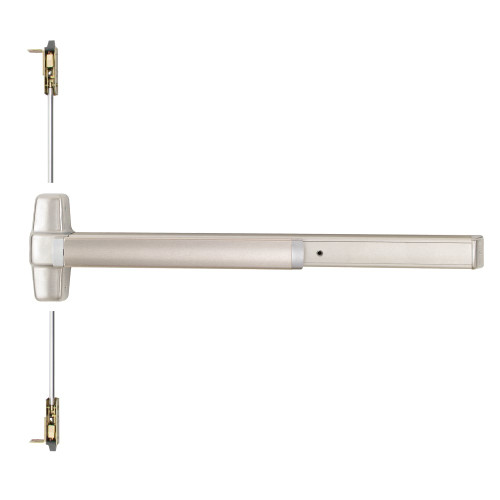

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
