Product Description

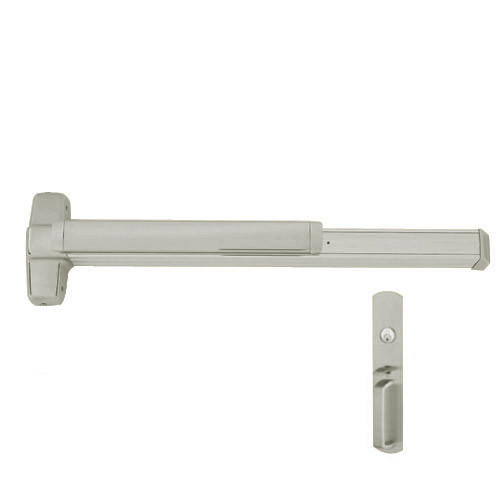

9847TP-F-US15-4 Von Duprin 9847 Series with 990TP Thumbpiece Fire Rated Concealed Vertical Rod Exit Device in Satin Nickel
The 9847TP-F-US15-4 is a Von Duprin 9847 Series Concealed Vertical Rod exit device in Satin Nickel (US15/619), sized for 4' doors. Thumbpiece Trim — thumbpiece-operated outside trim for keyed entry. Night latch function with thumbpiece activation. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: The 9847 concealed vertical rod device gives you that clean architectural look without visible hardware on the door face. Popular on upscale commercial projects where the architect doesn't want to see rods. Just remember — concealed rods are harder to service because you need to open the door to access the mechanism.
| Specifications | |
|---|---|
| Part Number | 9847TP-F-US15-4 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9847 |
| Function | Thumbpiece |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Nickel (US15/619) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9847 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- Satin Nickel finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
