Product Description
9848NL-OP-F-US15-4 Von Duprin 9848 Series with 110MD Night Latch Fire Rated Concealed Vertical Rod in Satin Nickel
The 9848NL-OP-F-US15-4 is a Von Duprin 9848 Series Concealed Vertical Rod exit device in Satin Nickel (US15/619), sized for 4' doors. Night Latch with Optional Pull — outside lever locks and unlocks by key with optional pull handle. Inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: When troubleshooting a 9847/9848 that won't latch, check the top bolt first. Concealed rod devices rely on precise alignment of internal components, and building settling can throw off the top bolt engagement. A simple strike adjustment often fixes what looks like a device failure.
| Specifications | |
|---|---|
| Part Number | 9848NL-OP-F-US15-4 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9848 |
| Function | Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Rod (top and bottom bolts hidden inside door) |
| Finish | Satin Nickel (US15/619) |
| Door Size | 4 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9848 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Rod (top and bottom bolts hidden inside door)
- Satin Nickel finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

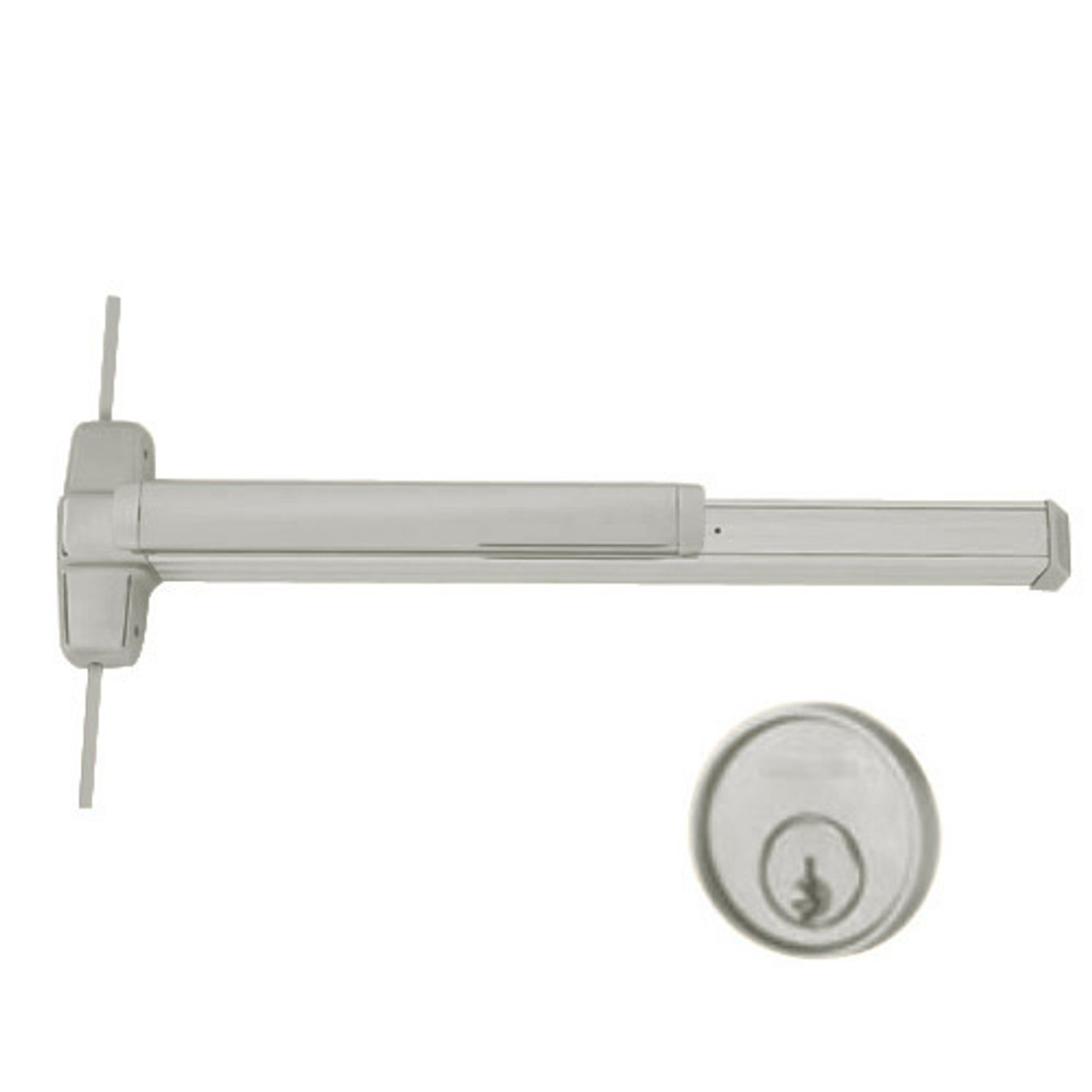

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
