9849NL-OP-US32D-3 Von Duprin 9849 Series with 110MD Night Latch Trim Function Concealed Vertical Cable Exit Device in Satin Stainless
The 9849NL-OP-US32D-3 is a Von Duprin 9849 Series Concealed Vertical Cable exit device in Satin Stainless (US32D/630), sized for 3' doors. Night Latch with Optional Pull — outside lever locks and unlocks by key with optional pull handle. Inside always free for egress. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The 9849 concealed vertical cable device replaces rigid rods with flexible cable — easier to install and more forgiving on door prep tolerances. If you're doing a retrofit and the door routing isn't perfect, cable devices give you more wiggle room than rod devices.
| Specifications | |
|---|---|
| Part Number | 9849NL-OP-US32D-3 |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9849 |
| Function | Night Latch |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Satin Stainless (US32D/630) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 9849 Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- Satin Stainless finish
- Hex key dogging standard — hold latch retracted during business hours

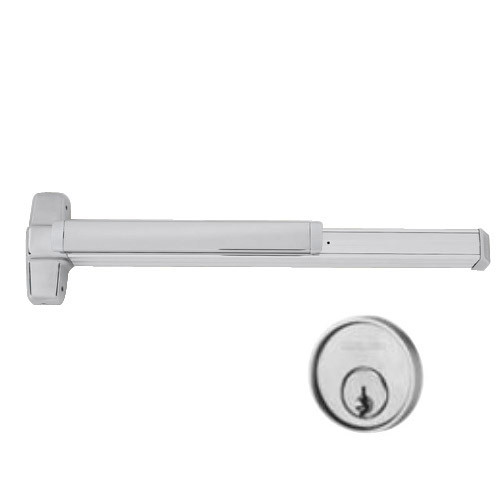

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
