Product Description
9850WDC-L-F-US4-3-RHR Von Duprin 9850 Series with 996L Lever Right Handed Fire Rated Wood Door Concealed Cable Device in Satin Brass
The 9850WDC-L-F-US4-3-RHR is a Von Duprin 9850WDC Series Wood Door Concealed Vertical Cable exit device in Satin Brass (US4/606), sized for 3' doors. Classroom Function — outside lever is locked until unlocked by key, relocks automatically when door closes. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
Fire Rated — UL listed for use on fire-rated openings. Mechanical dogging is deleted per UL code on fire-rated models. Field-reversible handing.
Pro-Tip from Our Locksmiths: When installing a 9849 cable device, make sure the cable runs clean without kinks. A kinked cable will bind and cause the device to malfunction. Route the cable through the door channels smoothly and check operation before finishing the install.
| Specifications | |
|---|---|
| Part Number | 9850WDC-L-F-US4-3-RHR |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 9850WDC |
| Function | Classroom |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices) |
| Finish | Satin Brass (US4/606) |
| Handing | Right Hand Reverse (RHR) |
| Door Size | 3 Foot |
| Cylinder | Ships less cylinder |
| Fire Rating | Fire Rated — UL Listed |
- Von Duprin 9850WDC Series touch bar mechanism — Grade 1 architectural-grade panic hardware
- Concealed Vertical Cable (flexible cable replaces rigid rods — easier install than rod devices)
- Satin Brass finish
- Fire rated — UL listed for fire-rated openings, no mechanical dogging
Ships Same Day — Order before 2PM EST and your Von Duprin product ships the same business day. Lock Depot is an authorized Von Duprin distributor — every product includes the full manufacturer warranty. Need help? Call (877) 365-5625.

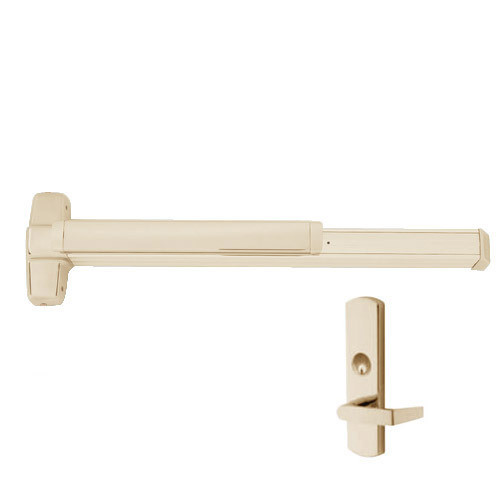

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
